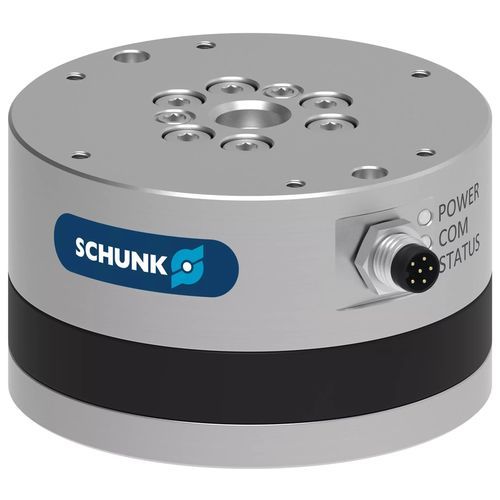

Torque force sensor FTS

6-axisflexiblehigh-precision

For high-precision measurement in the degrees of freedom Fxyz and Mxyz Advantages – Your benefits Maximum precision The strain gauges of the 6-axis force/torque sensor record the mechanical deformation of the sensor body and convert this into high-precision signals in all six degrees of freedom (Fx, Fy, Fz, Mx, My, Mz) Reliable protection Suitable for use in demanding environments thanks to protection class IP67 Seamless integration The Interface Box with EtherNet/IP, EtherCAT and PROFINET interfaces enables simple and flexible connection to customer network topologies Intuitive commissioning The SCHUNK Control Center simplifies commissioning with a user-friendly interface and creates synergies with other SCHUNK products Visual condition monitoring Integrated LEDs for power, communication, and sensor status facilitate status monitoring Robust base body The high rigidity ensures high measuring accuracy and durability, even in dynamic applications The strain gauges (DMS) of the 6-axis force/torque sensor measure the loads applied in all six degrees of freedom (Fx, Fy, Fz, Mx, My, and Mz). The DMS signals are amplified in the sensor. 1 Electronics no interfering contour, as integrated in the housing 2 Foil strain gauges in combination with low-noise signal processing, they ensure high resolution and signal quality. Standard adapter plates We offer 3 suitable standard adapter plates for suitable ISO 9409 interfaces for each sensor size. 1 6-axis force/torque sensor FTS 2 Adapter plates as per DIN ISO 9409
