Robotic tool changer CPB

automaticpneumatically-actuated

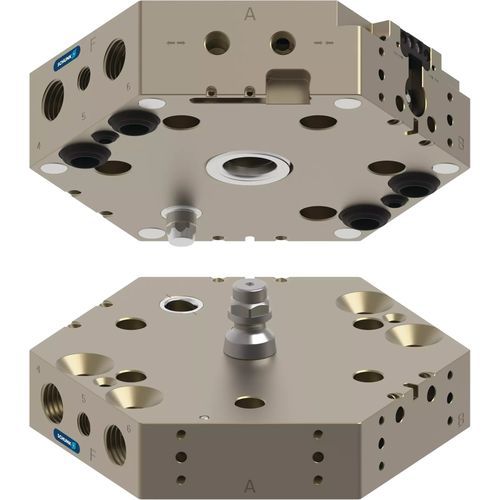

Pneumatically actuated tool changer with self-retaining function in the event of a loss of compressed air, the integrated piston spring ensures that gap formation is minimized. Advantages – Your benefits Tried-and-tested locking mechanism The positive-locking, self-retaining pin mechanism made of vacuum-hardened stainless steel is based on over 20 years of experience in stationary workholding, and offers maximum stability as well as long service life Integrated energy supply Additional pneumatic feed-throughs ensure a reliable supply of handling modules and tools Easy assembly The integrated ISO interface in accordance with ISO 9409 on the robot and tool side enables quick assembly and reduces the effort involved in commissioning The automatic tool changer CPB consists of a change master (CPB-K) and a change adapter (CPB-A). The CPB-K that is mounted on the robot couples and decouples the CPB-A which is mounted on the tool. The pneumatically actuated clamping slide and the high-precision locking pin ensure a reliable connection. Suitable option modules supply the coupled tool. 1 Housing Weight-optimized due to the use of high-strength, hard-coated aluminum alloy 2 Locking mechanism Functional parts are made of hardened stainless steel. The integrated clamping slides ensure a quick and fixed connection. Self-retaining during compressed air drop. Integrated spring prevents gap formation between master and adapter. 3 Short taper centering 4 Sensor monitoring of the locking device Optional, for monitoring in a reliable process
