Stainless steel intermodal container SB4794

transportfoldableflat rack

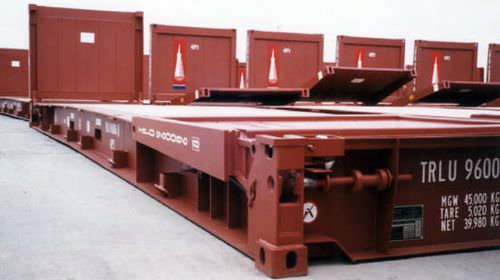

The unit has flat panelled end walls which lie directly on the top of the floor and which can then support point loads as a platform flat. There are no recesses in the base so the deck is clean and clear. Five units fold into 9' 6". The end wall can be removable for vehicle loading and may be used as a loading ramp for tyred vehicles up to 1.5 tonne axle load. STANDARD FEATURES • End walls fold flat on the floor for use as a platform flat • Clear cargo deck • Hi-cube • Removable end walls for vehicle loading • Spare parts available worldwide • Available for leasing • Five units fold into 9’ 6” • 7 high stacking at 30,480 Kgs • External Folded Dimensions: 1’ 10 51/64”/579 • TYPICAL LASHINGS AND INTERFACING • Stanchions: 6 sockets per side size 85mm • Lashing bars: 12 x 5000kg per side, 2 per end • Gooseneck tunnel: both ends • Floor: 45mm softwood planks 6mm gaps • Fork pockets: 115 x 360mm • Twistlocks: 1 piece forged lift element, 30 degree stainless steel detent • Header locks: 2 per end semi-automatic • Corner locking: hammer locked conical pin • Counterbalancing: leaf spring or coil • Removable ends: optional use as ramps • Approvals: ABS, LRS, BV, UIC, CSC, TCT
