Metal intermodal container SB4752

transportflat rack

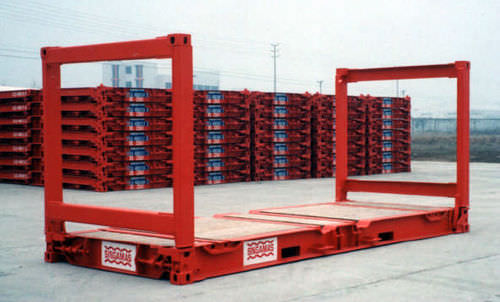

The 20ft Type (5) folds seven into 8ft6in module. It features a ‘goal post’ end, which is an open frame to enable its use with certain cargo projecting through the ends. The flat can be used as a bolster when the end frames are folded flush with the floor. A special feature of the Type (5) and (4) is the lashing beams which are unique to CSA flatracks and are essential for the Type (5) because of the need for additional longitudinal cargo securing. The end walls can be mixed easily with the Type (4) and walls are removable for vehicle loading. STANDARD FEATURES • End wall folding flush with the floor • Lashing beams set into the floor • Removable end walls for vehicle loading • Spare parts available worldwide • Commonly and readily available for leasing • Seven units fold into 8’ 6” • 9 high stacking at 24,000 Kgs • TYPICAL LASHINGS AND INTERFACING • Stanchions: 4 sockets per side size 85mm • Lashing bars: 8 x 5000kg per side, 2 per end • Floor lashing beams: 4 x 2m per floor each with: 6 x 5000kg lashing bars, 8 x 2m chocking slots • Floor: 45mm softwood planks, 6mm gaps • Fork pockets: 115 x 360mm • Twistlocks: 1 piece forged lift element, 30 degree stainless steel detent • Header locks: 2 per end semi-automatic • Corner locking: hammer locked conical pin • Counterbalancing: leaf spring • Removable ends: optional use as ramps • Approvals: ABS, LRS, BV, UIC, CSC, TCT
