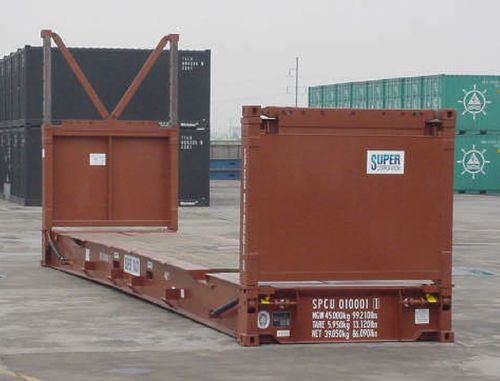

Stainless steel intermodal container SB47184

transportflat rack

This flatrack operates as a conventional 40ft’ Type (4). But within the corner posts there is a high strength telescopic post enabling very tall cargo to be carried, stacked and toplifted by spreader. Full strength is maintained at the maximum height, achieved in five 12in steps. This patented product includes manual hydraulic lifting of the end walls so that the different height setting can be made manually. A platform flat is created when the end frames are folded flush with the floor. STANDARD FEATURES • Tall cargo up to 11’ 5” • Stack tall cargo with other containers • Used as a platform flat when folded • End wall folding flush with the floor • Lashing beams set into the floor • Spare parts available worldwide • Available for leasing • Four units fold into 8’ 6” • 7 high stacking at 30,480 Kgs • Extended Height: 13’ 6”/4,115 • Folded Height: 2’ 1 1/2”/648 • TYPICAL LASHINGS AND INTERFACING • Stanchions: 6 sockets per side size 85mm • Lashing bars: 12 x 5000kg per side, 2 per end • Cross floor lashing: 4 x 2m per floor each with: 6 x 5000kg lashing bars, 8 x 2m chocking slots • Gooseneck tunnel: both ends • Floor: 45mm softwood planks 6mm gaps • Fork pockets: 115 x 360mm • Twistlocks: 1piece forged lift element 30 degree stainless steel detent • Header locks: 2 per end semi-automatic • Corner locking: hammer locked conical pin • Counterbalancing: leaf spring or coil • Removable ends: optional use as ramps • Approvals: ABS, LRS, BV, UIC, CSC, TCT
