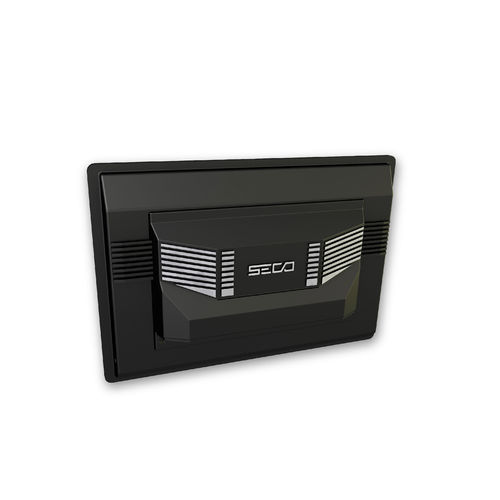

Projected capacitive touchscreen HMI Modular Vision 15.6 ASL

panel-mountVESA mountingrear-mounted

High end 15.6 inch HMI based on Intel Atom® Processors x7000RE Series (Codename: Amston Lake) Memory Up to 16GB LPDDR5-4800 soldered down memory with IBECC (In-Band Error Correction Code) Graphics Integrated Intel® UHD Graphics driven by Intel® Xe architecture: • Intel Atom® processor x7211RE with 16 Execution Units • Intel Atom® processor x7213RE with 16 Execution Units • Intel Atom® processor x7433RE with 32 Execution Units • Intel Atom® processor x7835RE with 32 Execution Units AVX256 & VNNI support for faster AI inference and media transcoding Mass Storage SDIO interface eMMC 5.1 drive soldered on-board Other Interfaces 1x I²C, SPI, 2x Digital In, 2x Digital Out Power Supply 9 VDC % 32 VDC Operating System - Clea OS (Yocto) Operating Temperature 0 ÷ 60 °C Dimensions 408 x 260 x 53 mm
