HMI with touch screen Pi Vision 10.1 CM5
VESA mountingpanel-mountfor integration

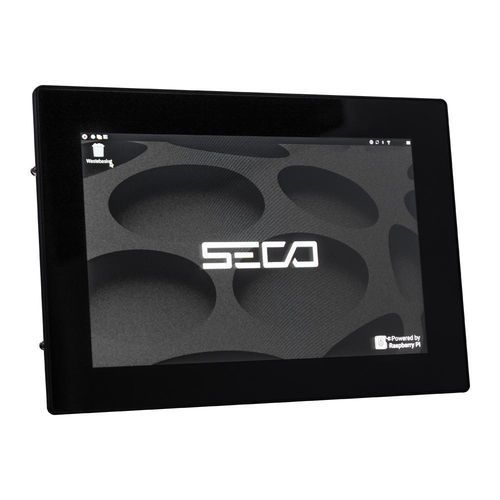

HMI with touch screen - Pi Vision 10.1 CM5 - SECO - VESA mounting / panel-mount / for integration
HMI with touch screen - Pi Vision 10.1 CM5 - SECO - VESA mounting / panel-mount / for integration
HMI with touch screen - Pi Vision 10.1 CM5 - SECO - VESA mounting / panel-mount / for integration - image - 2
Add to favorites
Compare this product
Go to the SECO website for more information

Characteristics

Interface
with touch screen
Mounting
panel-mount, VESA mounting, embedded, DIN rail, rear-mounted, panel mount, for integration
Resolution
1280 x 800
Processor
Arm® Cortex®-A53 Quad-core, quad-core, ARMv8
Screen type
IPS LCD, LED backlight
Operating system
Linux
Protection level
IP66
Connectivity
Ethernet, USB, USB 3.0, WiFi, Bluetooth, 2.4/5 GHz
Other characteristics
compact, fanless, all-in-one, IoT, waterproof front panel
Applications
industrial, display, for control, monitoring, operator interface, visualization, for IoT applications
Screen size

10.1 in

Description

Overview
10.1-inch HMI based on the Raspberry Pi Compute Module 5, designed for industrial and edge human-machine interface applications requiring an integrated display and versatile I/O set.

Highlights
  • Powered by Raspberry Pi Compute Module 5, Broadcom BCM2712 Quad-core Cortex-A76 + A53
  • 10.1” capacitive touch display: 1280x800 resolution
  • IP66 ingress protection (front) and high brightness display
  • Industrial-grade features: panel mounting, fanless design
  • Native compatibility with the Raspberry Pi ecosystem
  • OS-agnostic: preconfigured Raspberry Pi OS and support for Clea OS (Yocto LTS-based Linux distribution)

Display
  • 10.1-inch IPS display
  • Resolution: 1280 x 800
  • Brightness: 400 cd/m²
  • LED lifetime: 50,000 hours

Storage & Memory
  • Mass storage: Up to 64 GB eMMC flash; microSD card socket for CM5Lite modules
  • Memory: Up to 8 GB LPDDR4-4267 SDRAM with ECC

Connectivity & Expansion
  • Wireless: Wi‑Fi 2.4 / 5.0 GHz (IEEE 802.11 b/g/n/ac); BT 5.0, BLE
  • Ethernet: 1× Gigabit Ethernet PHY with IEEE 1588 support
  • USB: 2× USB 3.0 ports
  • PCIe: M.2 M-key PCIe socket
  • I/O footprint: HAT footprint with 40-pin GPIO; up to 5× UART, up to 5× I2C, up to 5× SPI, 1× SDIO, 1× DPI (parallel RGB), 1× I2S, up to 4× PWM channels, up to 3× GPCLK outputs

OS
  • Clea OS (Linux Yocto) and Raspberry Pi OS

Environment & Dimensions
  • Operating temperature: 0 °C to +60 °C
  • Dimensions: 270.1 × 187.1 × 51.7 mm
