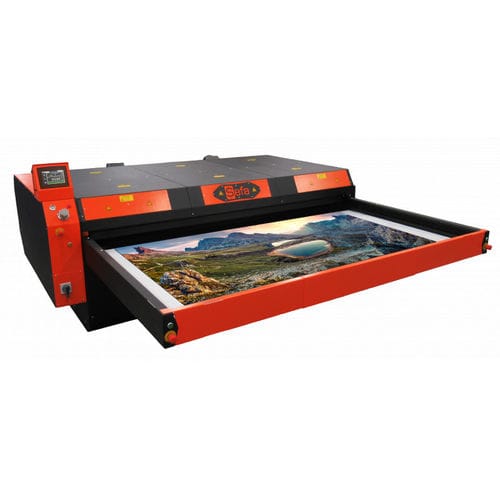

Motorized press SUBLIMAXI 2513pneumaticheat transferhigh-volume
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic, motorized
- Function
- heat transfer
- Applications
- for textiles, high-volume, for the textile industry
- Structure
- double, with heating plates, hot-platen
- Other characteristics
- digital, continuous, wide, with front loading/unloading
- Opening
45 mm
(2 in)- Table width
1,250 mm
(49 in)- Table length
2,500 mm
(98 in)- Overall length
145 cm
(57 in)- Overall width
320 cm
(126 in)- Overall height
301 cm
(119 in)
Description
Overview
The SUBLIMAXI 2513 is a pneumatic large-format heat press designed for high-productivity sublimation on large textiles and rigid substrates. Developed in partnership with ChromaLuxe, it handles prints up to 250 x 125 cm with precise, even heat and pressure distribution.
Applications
Key features
Electronics
Technical data
Support / Documents
Technical datasheet (PDF) and instruction manual (PDF) available for the SUBLIMAXI 2513. Additional ChromaLuxe substrate tables and a ChromaLuxe demo video are provided as product support resources.
The SUBLIMAXI 2513 is a pneumatic large-format heat press designed for high-productivity sublimation on large textiles and rigid substrates. Developed in partnership with ChromaLuxe, it handles prints up to 250 x 125 cm with precise, even heat and pressure distribution.
Applications
- Large-format textile printing and marking
- Sublimation on large rigid substrates (aluminium, MDF, wood, tiles — ChromaLuxe compatible)
- High-volume production environments requiring continuous operation
Key features
- Automatic drawer opening, closing and switching (motorised dual-drawer)
- Four independent concentric heating zones for uniform temperature across the platen
- Allows background tasking on the free platen to increase throughput
- Six pneumatic cylinders ensure uniform pressure over the entire platen
- Large touchscreen control panel for intuitive operation
- Includes Nomex-covered heat platen and dual air extractor
- Designed and manufactured in France; 2-year machine warranty, 10-year warranty on heating elements
Electronics
- Touch electronics developed by Sefa
- Precise and fast PID temperature regulation
- 4 recordable programs, double timer and counter with reset
- Energy-saving mode
Technical data
- Type: Pneumatic
- Operation: Slide - Tray with motorised drawer (two-drawer)
- Platen size: 255 x 130 cm (100 x 51 ")
- Useful platen size: 250 x 125 cm (98 x 49 ")
- Maximum substrate thickness: 45 mm
- Weight: 2180 kg (4806 lbs)
- Pressure: 318 g/cm²
- Maximum temperature: 220 °C (429 °F)
- Installed power: 37,000 W
- Power supply: 400 V, 3-phase + Neutral + Ground
- Amperage: 56 A
- Heating zones: 4 independent concentric zones
- Pneumatics: Six pneumatic cylinders for uniform pressure
- Platen cover: Nomex-covered heat platen
- Exhaust: Dual air extractor included
- Dimensions (machine): 1446 x 3202 x 3007 mm (57 x 126 x 118 ")
- Intended applications: Large-format textile prints, sublimation on large rigid substrates (ChromaLuxe)
Support / Documents
Technical datasheet (PDF) and instruction manual (PDF) available for the SUBLIMAXI 2513. Additional ChromaLuxe substrate tables and a ChromaLuxe demo video are provided as product support resources.
