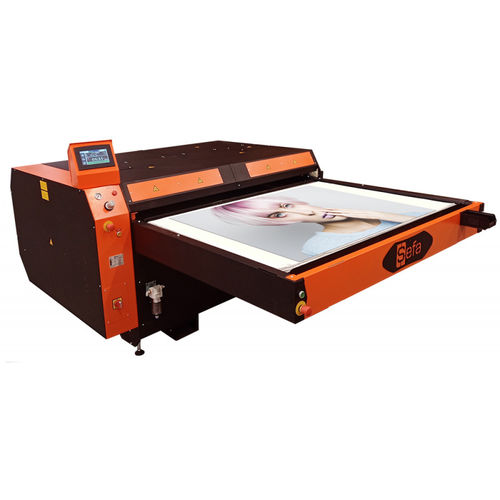

Pneumatic press SUBLI 1510+

heat transferfor the textile industryhot-platen

Short description
The SUBLI 1510+ is a large-format pneumatic heat press for high-definition dye-sublimation on textiles and rigid substrates, developed in partnership with ChromaLuxe.

Description
Large-format pneumatic press with two motorized drawer platens dedicated to textile and rigid-substrate sublimation. With two independent heating zones, the SUBLI 1510+ enables high-definition sublimation up to 150 x 100 cm on a range of supports: textile, aluminium, MDF, wood, tiles.

Suitable for

• Large-format textile printing
• Large-format textile sublimation
• Sublimation on large rigid substrates

Strengths

• Automatic drawer opening, closing and switching functions
• Two independent concentric heating zones for even heat distribution across the platen
• Allows background tasking on the free platen
• Four pneumatic cylinders ensure uniform pressure across the whole platen
• Large touchscreen control panel
• Includes Nomex-covered heat platen (ChromaLuxe version)
• Designed and manufactured in France
• Two-year machine warranty
• Ten-year warranty on heating elements

Electronics

• Touch electronics developed by Sefa
• Precise and fast regulation (PID control)
• 4 recordable programs
• Counter with reset
• Double timer
• Energy saving mode

Technical specifications

• Type: Pneumatic
• Operation: Slide - tray with drawer
• Platen size: 157 x 107 cm / 62 x 42 in
• Useful size: 152 x 102 cm / 60 x 40 in
• Max thickness: 45 mm
• Weight: 1000 kg / 2205 lbs
• Pressure: 296 g/cm²
• Max temperature: 220 °C / 429 °F
• Power: 17500 W
• Power supply: 400 V 3-phase + Neutral + Ground
• Amperage: 28 A
• Applications: ChromaLuxe, rigid-substrate sublimation, textile sublimation, flex
• Dimensions (W x L x H): 1370 x 2740 x 2019 mm / 54 x 108 x 79 in
