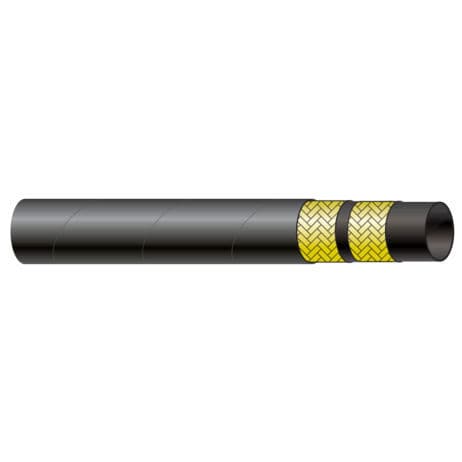

Hydraulic hose SAE 100 R16-Ssynthetic rubbersteelsynthetic
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic rubber, steel, synthetic
- Applications
- industrial
- Other characteristics
- standard
- Inner diameter
Max.: 26 mm
(1.024 in)Min.: 6.6 mm
(0.26 in)- Outer diameter
Max.: 35.3 mm
(1.39 in)Min.: 13.7 mm
(0.539 in)- Pressure
Max.: 400 bar
(5,801.51 psi)Min.: 165 bar
(2,393.123 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Compact hydraulic hose construction
GENERAL
TUBE
Synthetic rubber, resistant against hydraulic fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
REINFORCEMENT
Two braids of high tensile steel wire
COVER
Abrasion and ozone resistant synthetic rubber
Note: various covers available
STANDARD BRANDING
Embossed tape
