Hydraulic hose DIN EN 856 4 SHrubbersynthetic rubbersteel
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- rubber, synthetic rubber, steel, synthetic
- Applications
- industrial
- Other characteristics
- standard, spiral
- Inner diameter
Max.: 51.1 mm
(2.012 in)Min.: 16.4 mm
(0.646 in)- Outer diameter
Max.: 68 mm
(2.677 in)Min.: 28.7 mm
(1.13 in)- Pressure
Max.: 420 bar
(6,091.585 psi)Min.: 250 bar
(3,625.943 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description

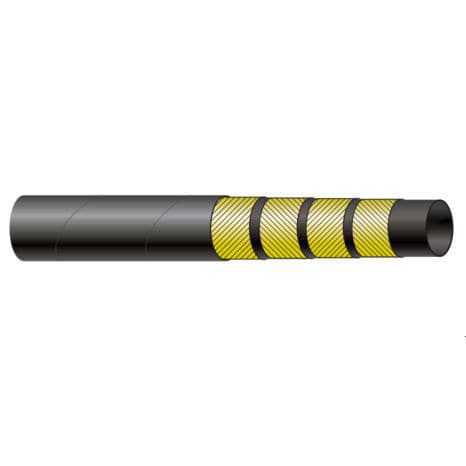

Multispiral hydraulic hose
GENERAL
TUBE
Synthetic rubber, resistant against hydraulic fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
REINFORCEMENT
Four spiral layers of high tensile steel wire
COVER
Abrasion and ozone resistant synthetic rubber – MSHA approved
Note: various covers available
STANDARD BRANDING
Mylar tape
