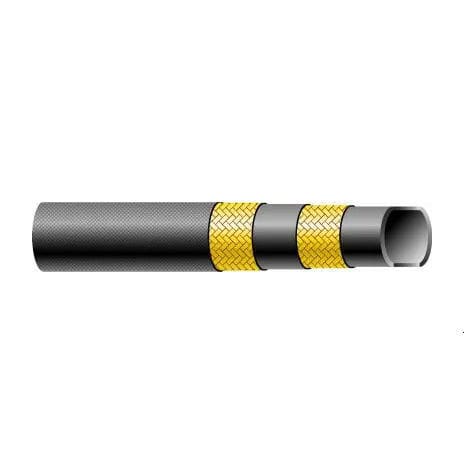

Hot water hose DS1 ultra

for steamEPDMconveying

Application For the use of saturated steam and hot water in the chemical and petrochemical industry, as well as in plant engineering, the construction industry and shipbuilding. Feature The DS1 ultra is designed for highest demands in industry. Two braids of zinc-plated steel-wire offer best resistance to superheated steam (up to + 230 ° C) and prevents corrosion. DS1 ultra is characterized by a high flexibility, small bending radius and small bending force as well. Electrically conductive: Resistance R<106 Ohm. Standard/Approval EN ISO 6134:2017 Type 2, class A. Safety factor Steam 10 : 1, Hot water 3,15 : 1 Tube EPDM, black, electrically conductive, smooth. Reinforcement Zinc plated steel braided. Cover EPDM, black, resistant to ozone and weather, electrically conductive, cloth impression. Marking continuous mylartape, red letters: "SEMPERIT (S) DS 1 ultra Sattdampf / Saturated Steam WP 18 bar 210°C (peak +230°C) R<106 Ohm MADE IN EU //////", as well as continuous embossed tape "SEMPERIT (S) DS1 ultra EN ISO 6134:2017 2A DAMPF / STEAM - PN 18 bar (1,8 MPa) 210 °C (peak 230°C) NW Ω xQ/YY (with EN dimensions). Notice ATTENTION: Use only suitable fittings (clamp fittings according to EN 14423:2016). ATTENTION: Superheated steam shortens considerably the service life of the hose! ATTENTION: Please refer to our saturated steam table.
