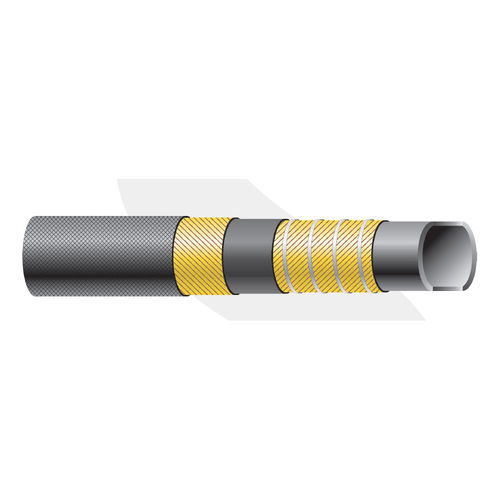

Oil hose TMR4EPDMNBRSBR
Add to favorites
Compare this product
Characteristics
- Use
- for oil
- Material
- EPDM, NBR, SBR
- Applications
- industrial
- Other characteristics
- abrasion-resistant, oil-resistant, smooth, weather-resistant, anti-static, reinforced, spiral wire
- Inner diameter
Max.: 152 mm
(5.984 in)Min.: 19 mm
(0.748 in)- Outer diameter
Max.: 168 mm
(6.614 in)Min.: 29 mm
(1.142 in)- Pressure
Max.: 21 bar
(304.579 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Application
Suitable for use as an oil return hose according to SAE 100/R4.
Standard/Approval
SAE J517 Type: SAE 100/R4: 2017.
Safety factor
4 : 1
Tube
NBR, black, antistatic, smooth.
Reinforcement
Textile wrapped, zinc plated double steel wire helix (DN > 50,0 zinc plated steel wire helix).
Cover
SBR/EPDM, black, resistant to ozone and weather, abrasion resistant, limited resistant to oil, cloth impression.
Marking
continuous embossed tape: "SEMPERIT (S) TMR4 Öl/Oil SD SAE 100/R4-ID MAX. W.P. MPa bar XQ/YY".
Notice
Hose is only suitable for oils according to SAE 100/R4.
ATTENTION: It is vital to be aware of the different working pressures.
