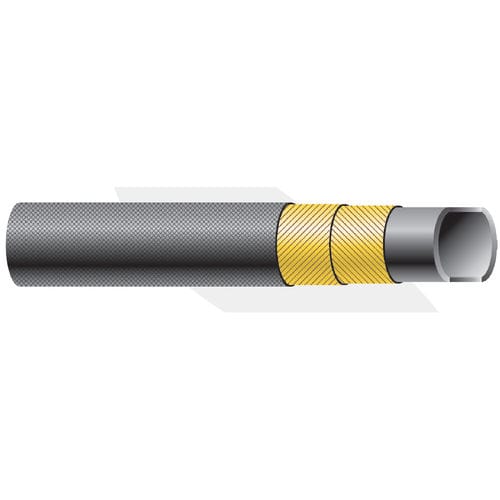

Hot water hose DHH
EPDMconveyingfor automotive applications

Hot water hose - DHH - Semperflex - EPDM / conveying / for automotive applications
Hot water hose - DHH - Semperflex - EPDM / conveying / for automotive applications
Hot water hose - DHH - Semperflex - EPDM / conveying / for automotive applications - image - 2
Add to favorites
Compare this product

Characteristics

Use
for hot water
Material
EPDM
Applications
conveying, for automotive applications
Other characteristics
flexible, smooth, weather-resistant, reinforced
Inner diameter

Max.: 102 mm
(4.016 in)

Min.: 13 mm
(0.512 in)

Outer diameter

Max.: 122 mm
(4.803 in)

Min.: 23 mm
(0.906 in)

Pressure

Max.: 10 bar
(145.038 psi)

Min.: 0 bar
(0 psi)

Temperature

Max.: 120 °C
(248 °F)

Min.: -45 °C
(-49 °F)

Description

Application: A flexible hose for conveying hot water for many applications in industry. Suitable for transporting anti-freezing agents in cars, tractors and trucks. Notice: ATTENTION: Hot water hose is not suitable for steam applications, (for steam use we recommend DS1, DS2, DS3). Température range: -45°C / +120°C. Safety factor: 5 : 1 Tube: EPDM, black, smooth. Reinforcement: Textile wrapped. Cover: EPDM, black, résistant to ozone and weather, cloth impression. Marking: none.
