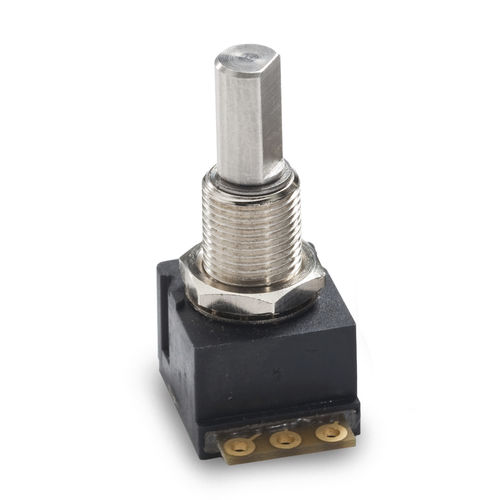

Rotary potentiometer 532 series

manualanalogprecision

The 5320 Series offers a highly reliable rotary potentiometer sensor that can be easily integrated or re-packaged into a wide variety of existing and new applications. The 5320 Series is ideally suited for tight packaging constraints while providing superior durability, long service life and repeatable accuracy. The sensor is fully sealed and impervious to contamination and moisture. A wide variety of standard and non-standard options are available including detent functions, electrical and mechanical angles, shaft/bushing sizes, lengths and configurations, resistance values, etc. The 5320 Series standard termination offers gold plated through holes for direct soldering. Options are also available for custom termination methods The 5320 series sensors offer all of the advantages of a cost effective, traditional potentiometer while providing a rugged, compact, low-profile design to survive the harshest conditions. Features Extended Operating Life 1 million plus operational cycles Fully Sealed Construction Meets or exceeds IP66/IP67 standards Extended Temperature Range Operating: -40º to +125ºC Storage: -55º to +150ºC High Quality, Rugged Construction Stainless Steel Shaft, Nickel Plated Brass Bushing Wide Range of Configurations (see ordering info) Shaft and Bushing Lengths Linearity (accuracy) Tolerance Limits With or Without Detent Function Total Resistance Custom Options Available
