Incremental rotary encoder DSM5H
solid-shaftanalogdigital output

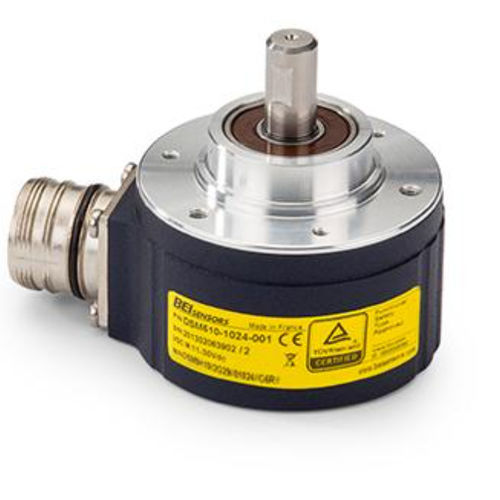

Incremental rotary encoder - DSM5H - Sensata Technologies - solid-shaft / analog / digital output
Incremental rotary encoder - DSM5H - Sensata Technologies - solid-shaft / analog / digital output
Add to favorites
Compare this product
Go to the Sensata Technologies website for more information

Characteristics

Type
incremental
Construction
solid-shaft
Output signal
analog, RS-422, digital output
Supply voltage
5VDC
Material
aluminum, stainless steel
Protection level
vibration-resistant, shock resistant, robust, IEC, SIL 3, IP65
Applications
for motors
Housing diameter

58 mm
(2.28 in)

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 85 °C
(185 °F)

Description

- Usable up to SIL3 and Cat.4 / PLe according to IEC 61508 / EN ISO 13849a - Suitable for safe motor feedback according to IEC 61800-5-2 - Robustness and excellent resistance to shock and vibration - Power supply 5Vdc or 11/30Vdc - Digital TTL/RS422 or HTL or sine/cosine 1Vpp output - Resolutions up to 2500ppr - Connector or cable output (DSM5, side output only for DSO5) - Stainless steel version available as an option (DSM5X) - consult factory - Adapted anti-rotation system (DSO5H)
