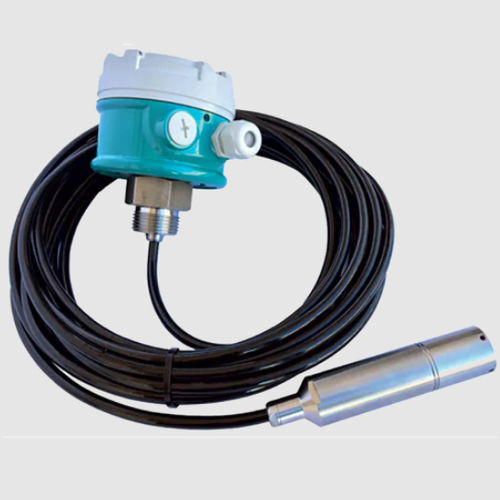

Hydrostatic level transmitter KPL
for liquids2-wire4-20 mA

Hydrostatic level transmitter - KPL - SGM LEKTRA - for liquids / 2-wire / 4-20 mA
Hydrostatic level transmitter - KPL - SGM LEKTRA - for liquids / 2-wire / 4-20 mA
Add to favorites
Compare this product

Characteristics

Technology
hydrostatic
Medium
for liquids
Interface
4-20 mA, 2-wire
Other characteristics
IP68, IP67
Level range

Max.: 200 m
(656'02" )

Min.: 1 m
(3'03" )

Process temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Description

KPL is suitable for continuous liquids level measurement. Typical application are waste water and deep wells. The KPL level transmitter configuration options make it suitable for most industrial sectors (oil, chemical, power, metallurgy, pharmaceutical and food) and in different operating conditions. These characteristics make it the ideal instrument in process automation for the hydrostatic head levels measurement. Additional information Power supply - 10÷36Vdc (2-wire) Measure range - from 0÷1mH2O to 0÷200mH2O Immersed probe material - SS304 Shielded cable material - PU Ø7 mm Housing material - (opt) aluminum Process connection - G 1”; G1”1/2; suspension cable; self- supporting fastening hook (opt.) Analog output - 4 ÷ 20mA Overload - 1.5 times the F.S Accuracy - ± 0.5%
