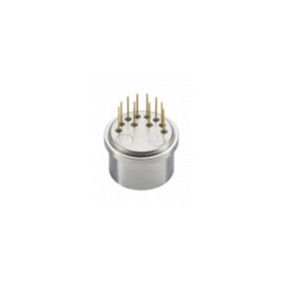

1-axis accelerometer ER-QA-03F

crystalwith temperature outputwith built-in electronics

ER-QA-03F series quartz flexible accelerometer is a compact, high temperature and vibration resistant accelerometer. The product has excellent repeatability, start-up performance, high temperature and vibration resistance and high reliability, which can be used for static and dynamic testing, and is also a standard vibration sensor. The product adopts unique miniaturization, high temperature and vibration resistance design, advanced packaging technology and special circuit, the output current of the product is proportional to the input acceleration, the user can select the appropriate sampling resistance by calculation, to achieve high precision output. And according to user needs built-in temperature sensor, can be used to bias and scale factor compensation, reduce the impact of ambient temperature. This product has been launched since 2012, and the number of deliveries has reached thousands. After many years of application, it has become a mature product, especially for the large-scale application in the measurement while drilling of oil drilling. Specifications 1. Bias repeatability: 150-220μg; 2. Scale factor repeatability: 150-220ppm; 3. Class II non-linearity repeatability: ±40~±50μg/g2.
