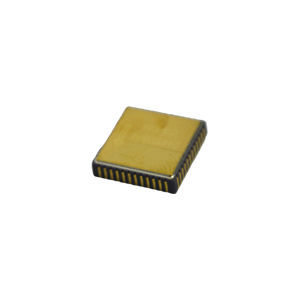

1-axis accelerometer ER-MA-6

MEMSruggedminiature

MEMS (Micro Electro Mechanical Systems) accelerometers are accelerometers manufactured using MEMS technology. Due to the use of micro-electromechanical system technology, its size is greatly reduced, and a MEMS accelerometer is only a fraction of the size of a fingernail. MEMS accelerometers have the advantages of small size, light weight, and low energy consumption. ER-MA-6 is an inertial sensor that can measure linear acceleration caused by gravity. This product is a MEMS accelerometer with a large range, ultra-high precision, high reliability and low power consumption. Features Large range, ultra-high precision, high reliability and low power consumption Class II Non-linearity: <10µg/g2 Bias Stability (1s smooth) (1σ): <15ug Bias Stability (10s smooth): <5ug Bias instability (Allan Curve): <2ug Applications Inertial measurement: inertial guidance, overload measurement, integrated navigation Tilt measurement: antenna attitude, platform measurement, tilt angle test Vibration measurement: mechanical equipment, bridges and dams, safety tests Specifications Encapsulation - CLCC48 - Axis - Y - Range - 60 - g Factor Scale Non-linearity - 150 - Hz Group delay - <3 - ms Class II Non-linearity - <10 - µg/g2 Noise - <30 - µg/√Hz @1hz Threshold value - <30 - µg Factory Bias(room temp) - <±1 - mg(Room temperature calibration value) Factory Bias temp drift - <±0.5 - mg Factory Bias Temp Hysteresis - <0.2 - mg
