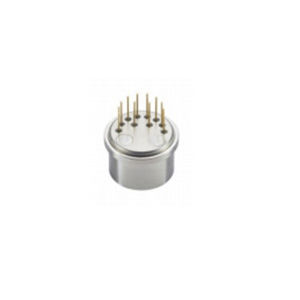

1-axis accelerometer ER-QA-03D

crystalwith temperature outputwith built-in electronics

Introduction
ER-QA-03D series quartz flexible accelerometer is a kind of high temperature and vibration resistance accelerometer, the product has excellent repeatability, start-up performance, high temperature and vibration resistance and high reliability, can be used for static test or dynamic test, is also a standard vibration sensor.

The product adopts unique high temperature and anti-vibration design, packaging technology and special circuit, the output current of the product is proportional to the measured acceleration, providing static and dynamic acceleration measurement, users can choose the appropriate sampling resistance through calculation, to achieve high precision output, and can be built in temperature sensor according to user needs, for bias and scale factor compensation, reduce the impact of ambient temperature. We can replace QA650, T185, T160, JAE series products in place, but we use double torque structure, which is different from other companies products, can make the accelerometer bias and scale factor more stable, and have independent intellectual property rights. This product has been launched since 2010, and the number of deliveries has reached thousands. After years of application, it has become a mature product, especially for the measurement while drilling of oil drilling.

Applications
Inclination angle test of Bridges, DAMS, oil Wells, coal mines, etc.
Control of high-speed railways, stability control of ships, etc.
