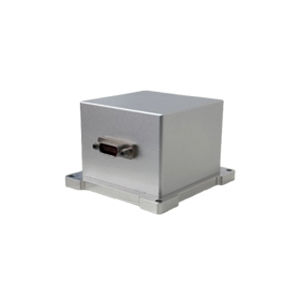

IMU ER-MIMU-052

Introduction ER-MIMU-052 uses MEMS accelerometer and gyroscope with high quality and reliability, RS422 and external communication.Default baud rate 921600 (customized). With X, Y, Z three-axis precision gyro, X, Y, Z three-axis accelerometer with high resolution, can be output by RS422 X, Y, Z three axis of gyroscope and accelerometer's original hexadecimal complement data (including gyro hexadecimal complement the numerical temperature, angle, the accelerometer hexadecimal temperature, the acceleration hexadecimal complement number); It can also output float dimensionless values of the gyroscope and accelerometer processed by the underlying calculation. A simple operation is required to connect our products to your system and obtain IMU data without the 15-pin plug provided by our company. At the same time, the size and weight of our products can be significantly reduced by removing the base plate housing. Features Size:70*65*45(with shell)/43.2*43.2*35.5 (without shell and baseboard) Weight:220(with shell) /100(without shell and baseboard) OEM, modular design, strong applicability -40~80°C temperature compensation Gyro bias instability: 0.03deg/hr Gyro bias stability (10s 1σ): <0.15deg/hr Gyro angular random walk: <0.01 °/√h Accelerometer bias repeatability: 100ug Accelerometer class II non-linearity coefficient: <100ug/g² High-performance navigation Application Integrated Navigation Systems & Inertial Guidance System Flight Control System Attitude Heading Reference Systems (AHRS) Stabilization of Antennas, Cameras & Platforms Aerial and Marine Geo-mapping / Surveying
