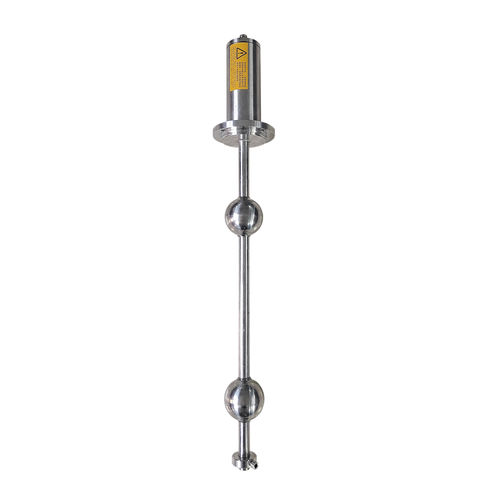

Magnetostrictive level transmitter SCZ01

for liquidsRS-485HART

Output Signal: 4~20mADC. RS485. etc Temperature Measurement: -25~70℃ Accuracy: ±0.3mm Resolution Ratio: ±0.02%FS or 0.1mm Process connection: Thread or Flange Features • High accuracy and stability • Anti-static, anti-surge, anti-interference and electromagnetic compatibility design • High-pressure vessel pressure pipe design. maintenance without pressure relief • Reasonable product structure. high precision and low maintenance rate Introduction SCZOI Magnetostrictive Level Transmitter (hereinafter referred to as sensor including common type and explosion-proof type) is used for continuous measurement of liquid level and interface. In addition, magnetostrictive liquid level sensors are used in a wide range of applications, including: petroleum, chemical raw material storage, industrial processes, biochemistry, pharmaceuticals, food and beverage, tank management, underground filling of gas stations, etc. Industrial meterng and control, dam water level, reservoir water level monitoring and sewage treatment. etc. Specification • Pressure range: OS000mm(Hard rod) / 0-25000mm(Soft rod) • Accuracy: ±O.3mm • Resolution Ratio:O.1mm or ±O.02%FS • Process connection: GI/2 male thread (or as per customer's requirement) • Ambient temp.: -25—701.' • Medium temp.: -25—150V • Power supply: 24VDC • Output signal: 4-20mADC(2/3 • Temperature Measurement: -25-70(: • Temperature error:20.5C • Type of explosion protection: Exia II BT4 • Communication protocol: RS-485, RS-232, Modbus, HARI etc, (or as per customer's requirement)
