High-voltage motor Y Series
inductionthree-phase6000 V

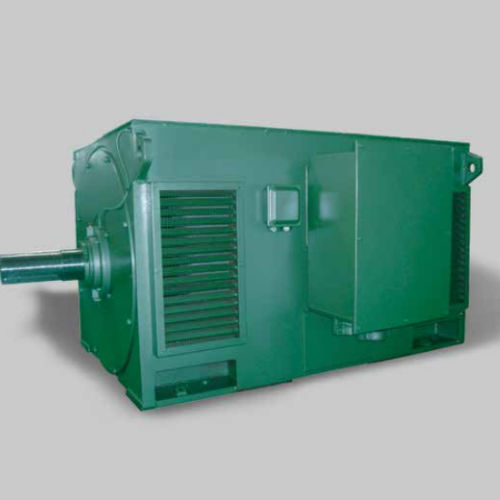

High-voltage motor - Y Series - Shandong Sunvim Motor Co., Ltd. - induction / three-phase / 6000 V
High-voltage motor - Y Series - Shandong Sunvim Motor Co., Ltd. - induction / three-phase / 6000 V
Add to favorites
Compare this product

Characteristics

Type
induction, three-phase
Voltage
6000 V, 10000 V
Configuration
squirrel cage
Protection class
IP23
Efficiency classes
IE1
Cooling mechanism
air-cooled, IC01
Applications
for the chemical industry, for the mining industry, for water treatment applications, for the metallurgical industry, for power plants, for the petroleum industry
Other characteristics
high-efficiency, low-noise, low-vibration, high-voltage
Power

Max.: 5,000 kW
(6,798.11 hp)

Min.: 220 kW
(299.12 hp)

Intensity

Max.: 560 A

Min.: 26.5 A

Torque

1.8 Nm
(1.327612 ft.lb)

Rotational speed

Max.: 2,980 rpm
(18,723.8922 rad.min-1)

Min.: 370 rpm
(2,324.7786 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -15 °C
(5 °F)

Description

Y series high voltage motor is squirrel-cage three phase asynchronous induction motor .The motor has protection class IP23,cooling method IC01,insulation class F, and mounting arrangement IMB3.The rated voltage is 6KV or 10 KV. This series motor is designed to be a box-type with light weight and high rigidity. The motors have good features of high efficiency, low noise, low vibration, reliable performance, easy installation and maintenance. They are widely used in power station, water plant, petrochemical, metallurgy and mining industries. Y series high voltage motor is squirrel-cage three phase asynchronous induction motor.The motor has protection class IP23，the rated voltage is 6KV or 10 KV.
