High-power motor Y2 Series
asynchronousthree-phase6000 V

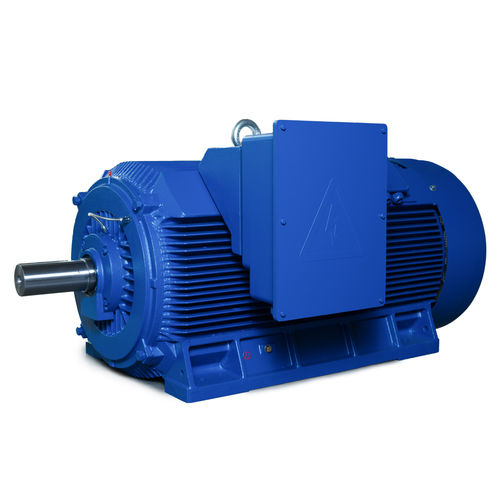

High-power motor - Y2 Series - Shandong Sunvim Motor Co., Ltd. - asynchronous / three-phase / 6000 V
High-power motor - Y2 Series - Shandong Sunvim Motor Co., Ltd. - asynchronous / three-phase / 6000 V
Add to favorites
Compare this product

Characteristics

Type
asynchronous, three-phase
Voltage
6000 V, 10000 V
Configuration
squirrel cage, TEFC, cast iron frame, compact, small
Protection class
IP54, rugged
Number of poles
4-pole, 2-pole, 6-pole, 8-pole, 10-pole
Cooling mechanism
IC411, forced-ventilated, IC416, IC410, IC418
Applications
for pump, for the chemical industry, for fans, for compressors, for the mining industry, for medical applications, for crusher
Other characteristics
high-efficiency, low-noise, high-power, low-vibration
Power

Max.: 1,600 kW
(2,175.39 hp)

Min.: 160 kW
(217.54 hp)

Intensity

Max.: 184 A

Min.: 20.6 A

Torque

Max.: 7,226 Nm
(5,329.624091 ft.lb)

Min.: 1,138 Nm
(839.345726 ft.lb)

Rotational speed

Max.: 2,985 rpm
(18,755.3081 rad.min-1)

Min.: 595 rpm
(3,738.4953 rad.min-1)

600 rpm, 750 rpm, 1,000 rpm, 1,500 rpm, 3,000 rpm
(3,769.9112 rad.min-1, 4,712.389 rad.min-1, 6,283.1853 rad.min-1, 9,424.778 rad.min-1, 18,849.5559 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -15 °C
(5 °F)

Description

Y2 series high voltage motors are totally enclosed squirrel-cage motors. The motors are manufactured with protection class IP54, cooling method IC411,insulation class F, and mounting arrangement IMB3.The rated voltage is 6kv or 10KV. This series motors are designed with cast iron frame, which has small size and compact structure. The motors have good features of high efficiency, low noise, low vibration, reliable performance, easy installation and maintenance. It is widely applied to drive various machinery, such as compressor, ventilator, pump, and crusher. The motors can also be used as prime mover in petrochemical, medicine, mining fields and even in harsh environmental conditions. Y2 series high voltage motors are totally enclosed squirrel-cage motors.The motors are manufactured with protection class IP54,the rated voltage is 6kv or 10KV.

Catalogs

Y2
Y2
6 Pages
YKK/YXKK
YKK/YXKK
9 Pages
