High-voltage motor YLKK Series
inductionthree-phase6000 V

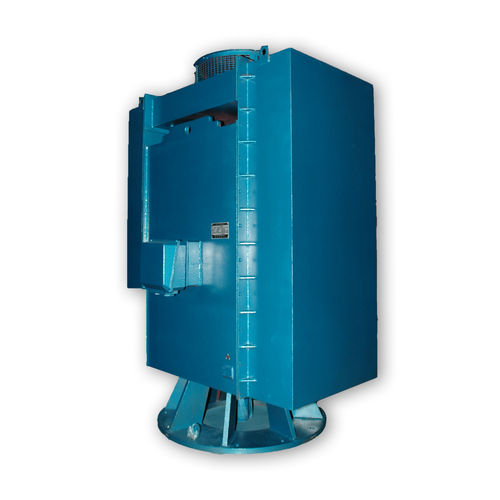

High-voltage motor - YLKK Series - Shandong Sunvim Motor Co., Ltd. - induction / three-phase / 6000 V
High-voltage motor - YLKK Series - Shandong Sunvim Motor Co., Ltd. - induction / three-phase / 6000 V
Add to favorites
Compare this product

Characteristics

Type
induction, three-phase
Voltage
6000 V, 10000 V
Configuration
compact, vertical
Protection class
IP55, IP54, IP44
Number of poles
4-pole, 2-pole, 6-pole, 8-pole, 10-pole, 12-pole
Cooling mechanism
IC611
Applications
industrial
Other characteristics
IEC, high-efficiency, low-vibration, high-voltage, energy-saving
Power

Min.: 185 kW
(251.53 hp)

Max.: 3,150 kW
(4,282.81 hp)

Intensity

Min.: 16.7 A

Max.: 359.6 A

Torque

1.8 Nm
(1.327612 ft.lb)

Rotational speed

Min.: 490 rpm
(3,078.7608 rad.min-1)

Max.: 1,485 rpm
(9,330.5302 rad.min-1)

Operating temperature

Min.: -15 °C
(5 °F)

Max.: 40 °C
(104 °F)

Description

YLKK Series vertical high voltage motor is the new product designed with the latest technology. This series motors stand out for high efficiency, high energy savings, low vibration, low weight, compact structure, reliable operation and convenient maintenance. The motors comply with the national standard GB755 “rotating electrical machines-rating and performance” and the relevant IEC standards. The motor frame is welded by steel plate, and offer excellent rigidity and vibration resistance performance. They are manufactured with F insulation structure and VPI vacuum pressure impregnation process. The non-stop filling and discharging bearing system ensures a convenient maintenance. Special requirements on voltage, power, frequency and mounting dimension can be customized. YLKK Series motors comply with the national standard GB755 and the relevant IEC standards. The motor frame is welded by steel plate, and offer excellent rigidity and vibration resistance performance. They are manufactured with F insulation structure and VPI vacuum pressure impregnation process. The non-stop filling and discharging bearing system ensures a convenient maintenance.

Catalogs

YLKK
YLKK
10 Pages
