High-voltage motor YL Series
inductionthree-phase6000 V

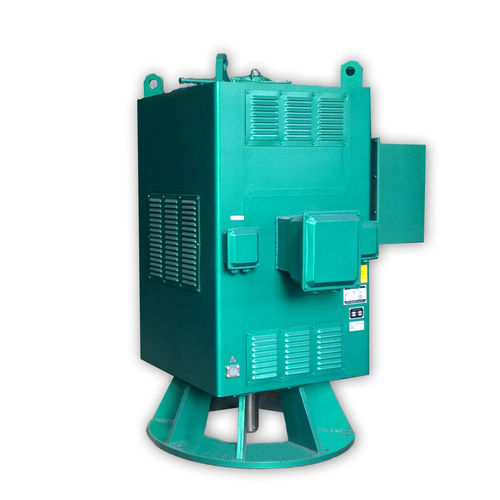

High-voltage motor - YL Series - Shandong Sunvim Motor Co., Ltd. - induction / three-phase / 6000 V
High-voltage motor - YL Series - Shandong Sunvim Motor Co., Ltd. - induction / three-phase / 6000 V
Add to favorites
Compare this product

Characteristics

Type
induction, three-phase
Voltage
6000 V, 10000 V
Configuration
compact
Protection class
IP23
Number of poles
4-pole, 2-pole, 6-pole, 8-pole, 10-pole, 12-pole
Cooling mechanism
self-ventilated, IC01
Applications
industrial
Other characteristics
high-efficiency, low-vibration, high-voltage, energy-saving
Power

Min.: 220 kW
(299.12 hp)

Max.: 3,550 kW
(4,826.66 hp)

Intensity

Min.: 17.6 A

Max.: 399.4 A

Torque

1.8 Nm
(1.327612 ft.lb)

Rotational speed

Min.: 490 rpm
(3,078.7608 rad.min-1)

Max.: 1,485 rpm
(9,330.5302 rad.min-1)

Operating temperature

Min.: -15 °C
(5 °F)

Max.: 40 °C
(104 °F)

Description

YL series of motors features high efficiency, high energy savings, low vibration, low weight, compact structure, reliable operation and easy maintenance. The motor frame is welded from steel plate, providing excellent rigidity and vibration resistance. They are manufactured with F insulation structure and VPI vacuum pressure impregnation process. The non-stop loading and unloading bearing system ensures easy maintenance. Special requirements for voltage, power, frequency and mounting dimensions can be customised. YL series motors frame is welded from steel plate, providing excellent rigidity and vibration resistance. They are manufactured with F insulation structure and VPI vacuum pressure impregnation process. The non-stop loading and unloading bearing system ensures easy maintenance.
