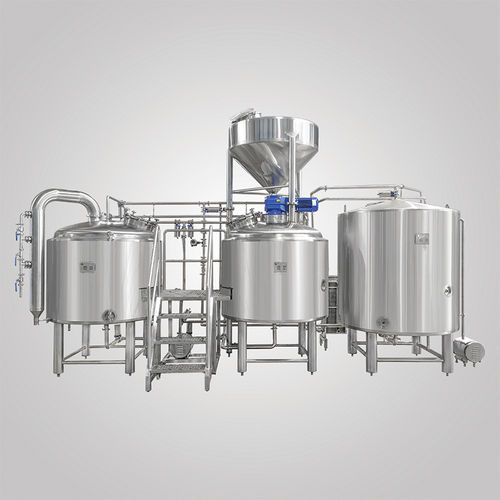

Stainless steel brewing system

steam heat

Description 10BBL Steam Mash Tun is a vessel used in the mashing process to convert the starches in crushed grains into sugars for fermentation. TBE Steam Mash Tuns are insulated to maintain a constant temperature. The Steam Mash Tun can be single-function or can also have a false bottom and spigot so that the sparging process can be done in the same vessel. Steam jacket design will allow The TBE systems are designed to do both decoction mashing and infusion mashing. The mashing tun/kettle is made out of stainless steel or copper. Standard Configuration Function: Grain mashing Tank Capacity: 10BBL (+25% Headspace minimum) Dimension: 1360mmx2550mm Interior Shell: SUS304 full welded; TH=3mm Exterior Shell:SUS304 full welded; TH=2mm 100% TIG welding with pure argon gas shield Interior Finish: Overall polishing to 0.4~0.6 um without dead corner Insulation: Rock wool; TH=80mm Heating: Steam Steam Jacket: Dimple plate on bottom and side Dished top and sloped bottom Stainless steel top mounted manway 4pcs completely SUS304 heavy duty legs with leveling pad Thermowell for high accuracy temperature sensor
