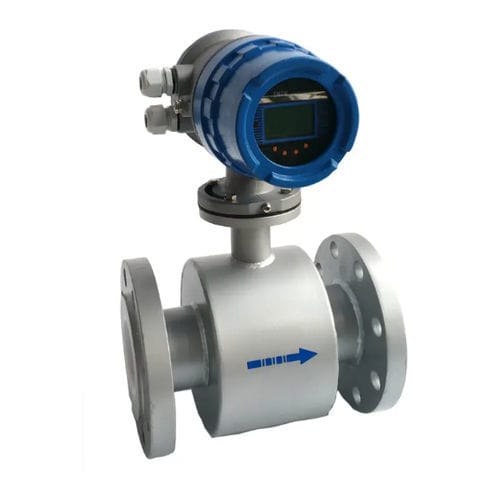

Electromagnetic flow meter BQ-MAG

volumefor waterfor chemicals

Measurement is not affected by the variation of flow density, viscosity, temperature, pressure and conductivity. High accuracy measurement is guaranteed according to the linear measurement principle. No moving parts in the pipe, no pressure-loss and lower requirement for straight pipeline. DN 6 to DN2000 covers a wide range of pipe size. A variety of liners and electrodes are available to satisfy different flow characteristic. Programmable low frequency square wave field excitation, improving measurement stability and reducing power consumption. Implementing 16 bits MCU, providing high integration and accuracy; Full-digital processing, high noise resistance and reliable measurement; Flow measurement range up to 1500:1. High definition LCD display with backlight. Intelligent empty pipe detection and electrodes resistance measurement diagnosing empty pipe and electrodes contamination accurately. SMD component and surface mount technology (SMT) are implemented to improve the reliability. Electromagnetic flow meter technical parameters Display: reaches 8element liquid crystal display, current clock to indicate flow data. Two kinds units to choose: m3 or L Structure: inserted style, integrated type or separated type Measuring medium: liquid or solid-liquid two phase fluid, conductivity>5us/cm2 DN (mm): 6mm-2600mm Output signal: 4-20mA,pulse or frequency Connection: thread,flange,tri-clamp Power supply: AC86-220V,DC24V,battery Optional Lining material：rubber, polyurethane rubber,chloroprene rubber,PTFE,FEP Optional Electrode material：SS316L, hastelloyB, hastelloyC, platinum,Tungsten carbide
