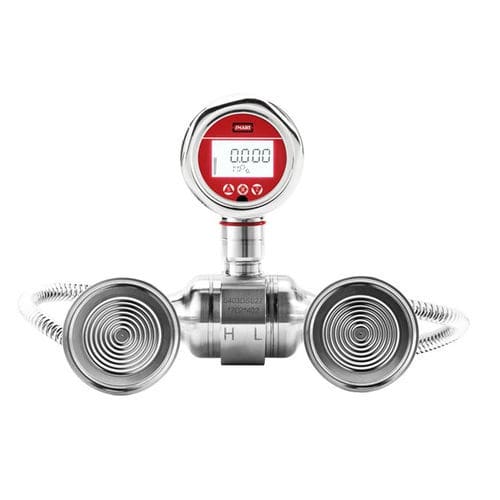

Differential pressure transducer SMP858-NSF
siliconpiezoresistive4-20 mA

differential pressure transducer
differential pressure transducer
differential pressure transducer
differential pressure transducer
differential pressure transducer
differential pressure transducer
differential pressure transducer
differential pressure transducer
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Technology
silicon, piezoresistive
Output
4-20 mA, HART
Supply voltage
24 Vdc
Mounting
flush diaphragm, flange
Fluid
for gas, for liquids
Material
stainless steel
Protection level
intrinsically safe, IP67
Applications
process, for OEM, for medical applications, for the food industry, for medical devices
Other characteristics
high-temperature, compact, precision, sanitary, programmable, OEM, with digital display, high-sensitivity, fully-welded, with diaphragm seal, with LCD display, smart, digitally compensated, fast response time, two-wire, economical, low pressure, silicone oil-filled, oil-filled, temperature-compensated, CE
Pressure range

Min.: 4,000 Pa
(0.58 psi)

Max.: 1,000,000 Pa
(145.04 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 180 °C
(356 °F)

Description

SMP858-NSF Monosilicon pressure transmitter is the best hygienic pressure transmitter meticulously designed by LEEG Instrument, with the world’s most advanced silicon pressure sensor technology and patent encapsulation process. SMP858-NSF adopts full isolation seal structure to eliminate the humidity effects, suitable for severe wet cleaning occasion. Double diaphragm overload protection structure to achieve the highest overload pressure 42MPa, is suitable for severe pressure overload situations. • Fully-welded structure to reduce the leakage point at utmost. • Without any hygiene residue, meet the highest hygiene standards. • Central diaphragm overload protection structure, the highest overload pressure up to 42MPa. • Available for low range with high overload pressure and high accuracy. • Hygiene design to meet the standard FDA and GMP. • Material and roughness of surface meet the Hygiene standard.
