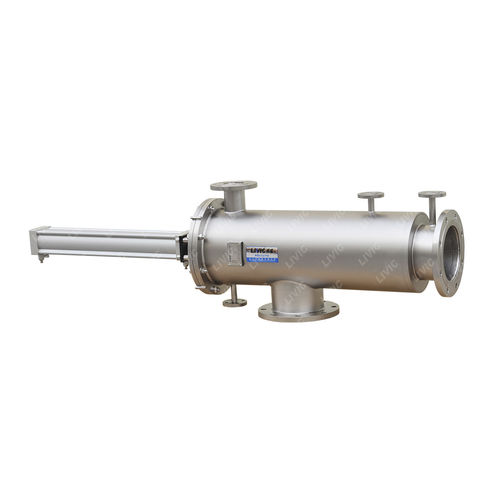

Water filter AF series

water filter
water filter
water filter
water filter
Add to favorites
Compare this product


Designed for
Filtration element
continuous, self-cleaning
Operating pressure

0.3 bar
(4.351 psi)

Filtration size

Max.: 2,000 µm

Min.: 150 µm


AF series Bernoulli self-cleaning Filter is designed for continuous filtration of water on pressurized systems. AF Filter removes debris and particles from waters such as sea water, river water and the circulating cooling water. AF filter works in BERNOULLI principle, which leads to the simple and highly reliable filtering operation. Simple and reliable structure with only two moving parts (clean disc and flushing valve), non-contact cleaning, no particle extrusion out of the filter screen, efficient filtration, low and consistant pressure drop (even < 11KPa) both when clean and dirty, very low working pressure requirement down to 30KPa, wide flow rate range from 30 t0 8000 m3/ h through single filter, with filtration degree ranging from 150 from 2000μm, no filtration interruption when self-cleaning, easy installation in horizontal or vertical position.
