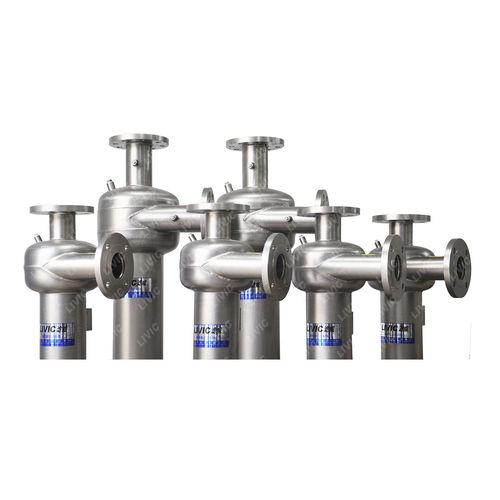

Centrifugal separator VS series
liquidfor solidshigh-efficiency

centrifugal separator
centrifugal separator
centrifugal separator
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Separated substance
liquid, for solids
Other characteristics
high-efficiency
Filtration size

40 µm

Flow rate

Min.: 7 m³/h (247.203 ft³/h)

Max.: 307 m³/h (10,841.603 ft³/h)

Description

VS Series Centrifugal Solid-liquid Separator (VS Separator for short) is widely used in the field of solid-liquid separation. It separates precipitable particles from liquids by centrifugal force by liquid rotation. The separation efficiency of VS Separator depends on the particle density and the liquid viscosity. Larger density of particles and lower viscosity of liquid, better separation efficiency is available. For high density particles larger than 40μm, its separation efficiency can exceed 98%. VS Separator can separate solid particles as small as 5μm. When separating, VS Separator requires no moving parts and no cleaning or replacing of filter elements, so it keeps running year after year with no maintenance. The highly efficiency, consistent performance and economic running cost make it an ideal solution for solid-liquid separation process.
