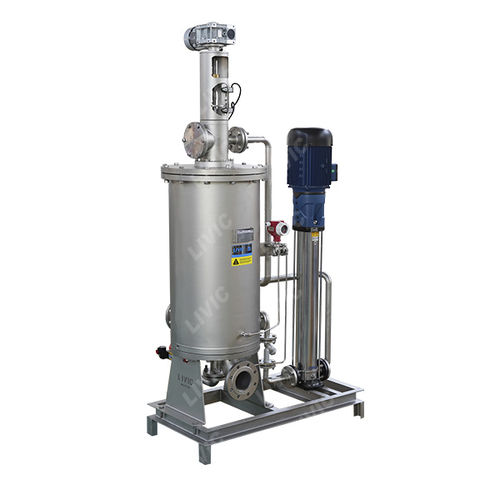

Self-cleaning filtration system JetFlow®
for wateroilfuel

self-cleaning filtration system
self-cleaning filtration system
self-cleaning filtration system
Add to favorites
Compare this product


Characteristics

Designed for
for water, oil, fuel, for seawater, for potable water, for raw water
Other characteristics
automatic, high-performance, high-efficiency, self-cleaning, stainless steel
Flow

Max.: 1,000 m³/h
(35,314.667 ft³/h)

Min.: 5 m³/h
(176.573 ft³/h)

Filtration size

Max.: 300 µm

50 µm

Min.: 3 µm

Pressure

4.35 psi

Description

JetFlow® Automatic Backwash Filters and Strainers are designed on the base of scanning automatic self-cleaning Filter. When the filter screen can not be regenerated only by back washing with inside suction nozzles, JetFlow® Automatic Backwash Filter adopts the augmented injection back-washing design with a high pressure (H.P. for short) pump to clean the filter screen completety. It is the idéal solution for the challenging service conditions such as high TSS liquid, ultra-fine filtration degree down to 5 |_im, sticky débris and particles or low inlet pressure. JetFlow® Automatic Backwash Filter can efficiently remove the suspended solids, sediment and plankton from water or water-like liquid. It keeps efficient self-cleaning performance and continuously work with one single filter. Filtration process is not interrupted during back-flushing. Chemical class design of JetFlow® Automatic Backwash Filter is also available to meet the requirements such as high temperature, high pressure, explosion-proof, zéro leakage, etc. JetFlow® Automatic Backwash Filters can meet the most demanding requirements.
