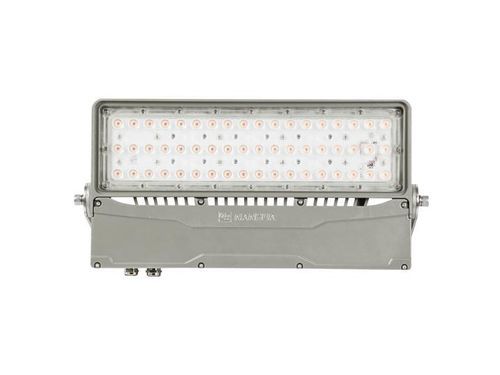

LED floodlight LF46S

IP67IK 08outdoor

Overview
LF46S series LED flood light designed for directional aiming and reliable outdoor operation. The luminaire resists adverse weather and provides energy-efficient, low-maintenance illumination for large industrial and outdoor areas such as ports, wharfs, mines, airports and stadiums.

Features

• Efficient LED light source with long service life.
• Integrated fin-type aluminum housing for effective heat dissipation and mechanical integrity.
• Rear-angle housing design to prevent water and dust accumulation.

Product description and application
The LF46S can be oriented to aim light precisely where required. Multiple optical lens options enable tailored light distribution for task and area lighting. Typical installations include port terminals, large open-pit operations, airport aprons, sports venues and other industrial or large outdoor environments requiring robust, weatherproof illumination.

Base

• Product name: Series LED Flood Light
• Product number: LF46S

Optics

• Light source: LED
• Color temperature: 5700K / 4000K / 2700K
• CRI: Ra ≥ 70 (Ra ≥ 80 optional)
• Light efficacy: ≥140 lm/W or ≥130 lm/W depending on configuration

Electrical

• Voltage: 120V–277VAC
• Power options: 100W, 150W, 200W
• Frequency: 50Hz / 60Hz
• Power factor: > 0.9
• EMC: IEC61000-4-2 (Contact ±8kV, Air ±15kV); IEC61000-4-3 (800–1000MHz 10V/m); IEC61000-4-4 (±2kV); IEC61000-4-5 (L–N: ±2kV, L,N–PE: ±4kV); IEC61000-4-6 (0.15–80MHz 10V/m); EN55015 CLASS C
• Dimming: 0–10V (optional)
• Wiring: Waterproof gland or lead wire

Mechanical

• Colour: Silver
• Housing: Aluminum alloy
• Lens: PC
• Surface treatment: Polyester coating
• Weight: 8 kg (for 100W / 150W / 200W variants)
• Installation: U bracket
• Operating temperature: -40°C to +50°C
• Working humidity: 0–100% RH
• Anti-vibration: IEC60068-2-6, 5g
• Ingress protection: IEC60529 IP67
• Impact resistance: IEC62262 IK08
• Salt spray resistance: ISO9227, 720 h

Technical specifications

• Model: LF46S
• Power: 100W / 150W / 200W
• Input voltage: 120V–277VAC
• Color temperature options: 5700K, 4000K, 2700K
• CRI options: Ra ≥ 70; Ra ≥ 80 available
• Light efficacy: up to ≥140 lm/W depending on configuration
• Protection: IP67, IK08; salt spray 720 h
• Weight: 8 kg
• Dimming: 0–10V optional
