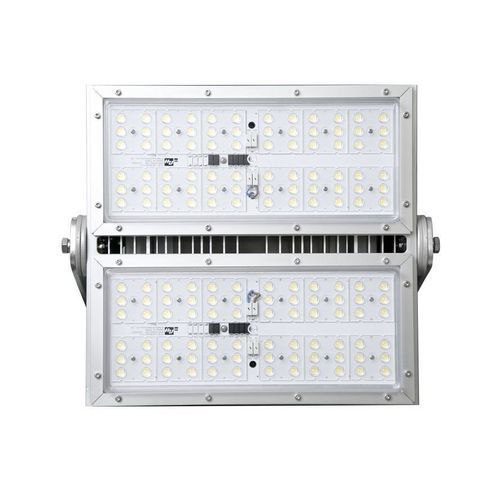

LED floodlight HL80

waterproofanti-corrosionIP67

Product description and application
The HL80 modular LED high mast light is engineered for outdoor industrial use and is tested to withstand 10kV lightning surge events. It delivers high luminous efficacy with configurable beam angles and power options, providing reliable area lighting for ports, mines, airports, stadiums and other large outdoor sites.

Features

• Optimized heat-flow channels and anodized aluminum extrusion heat sink for effective thermal management.
• Waterproof and breathable valve to balance internal/external pressure and protect the LED module.
• Multiple optical distributions available (30°, 60°, asymmetric 20°×100°) to match different lighting layouts.
• Adjustable and clearly marked aiming angles for precise installation.
• Optional light shield to improve cutoff and reduce glare where required.

General specifications
Base
Product name: High Mast Light
Product model: HL80

Optics
Light source: LED
Color temperature: Cold white 5700K; Warm white 2700K
CRI: Cold white Ra≥70; Warm white Ra≥80
Luminous efficacy: (30°/60°) Cold white 150 lm/W; Warm white 125 lm/W; Asymmetric (20°×100°) Cold white 140 lm/W; Warm white 120 lm/W
Source life: ≥50000 h
Beam angles: 30° / 60° / Asymmetric 20°×100°

Electrical
Rated voltage: 100-240 VAC
Frequency: 50/60 Hz
Rated power: 400W, 600W, 800W, 1000W
Power factor: > 0.9
EMC and surge: Meets IEC standards; designed to withstand 10 kV lightning surge test (IEC61000-4-5 DM ±6kV / CM ±10kV) and other EMC limits listed

Mechanical
Color: Silvery white
Housing: Anodized aluminum alloy
Cover: PC
Finish: Anodized
Weight options: 12 kg / 17 kg / 22 kg / 28 kg
Mounting: Bracket
Operating temperature: -40°C to +50°C
Vibration: ANSI C136.31 1.5 g
IP rating: IEC60529 IP67
Anti-corrosion: ISO12944 C5 M

Certificates and standards
CE: EN60598-1, EN60598-2-5, EN62493, EN62471, EN55015, EN61547, EN61000-3-2, EN61000-3-3
UL: UL1598, UL8750/CSA C22.2 NO250.0-08, CSA C22.2 No250.13

Technical specifications

• Model: HL80
• Light source: LED
• Color temperatures: Cold white 5700K; Warm white 2700K
• Typical luminous efficacy: up to 150 lm/W (cold white, 30°/60°)
• Beam angles: 30°, 60°, Asymmetric 20°×100°
• Rated power options: 400W, 600W, 800W, 1000W
• Input voltage: 100-240 VAC, 50/60 Hz
• Power factor: >0.9
• EMC / surge performance: complies with IEC standards; designed for 10 kV lightning surge
• IP rating: IP67
• Operating temperature: -40°C to +50°C
• Weight options: 12 kg / 17 kg / 22 kg / 28 kg
• Housing: anodized aluminum alloy; cover: PC
• Certifications: CE and UL listed standards
