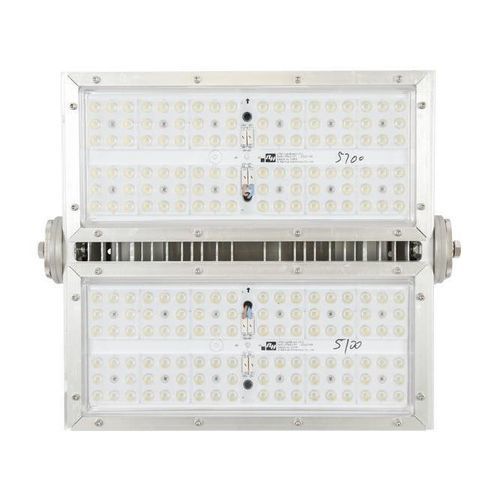

LED floodlight LF80

IP67bracket-mountedfor mining

Overview
LF80 series modular LED floodlights deliver high-efficiency, energy-saving and low-maintenance lighting solutions. Combined with multiple optical lenses, the LF80 provides stable, uniform and comfortable illumination for large-area industrial environments, helping operators focus on safety and productivity. Typical applications include ports, large-scale mines, airports and stadiums.

Features

• Extruded aluminium heat sink with high thermal conductivity to extend LED lifetime.
• Optimised airflow channels for effective thermal management.
• Waterproof breathable valve balances internal/external pressure and protects the LED module.
• Multiple optical distributions available to suit varied lighting scenarios.
• Visible, adjustable aiming for precise positioning across different mounting points.
• Optional light shield to improve cut-off and reduce glare.

Applications

• Port and dock lighting
• Factories and large-scale mines
• Airports and stadiums
• Public squares and large buildings

Technical specifications

• Product name: LED floodlight
• Model: LF80
• Light source: LED
• Color temperature: Cold white 5700K; Warm white 2700K
• CRI: Cold white Ra≥70; Warm white Ra≥80
• Luminous efficacy: Cold white 140 lm/W; Warm white 115 lm/W
• Lifetime: ≥50,000 h
• Beam angle: 15° / 60°
• Frequency: 50/60 Hz
• Rated power options: 300W, 400W, 600W
• Power factor: PF > 0.9
• EMC: IEC61000-4-2 Contact discharge: 8KV Air discharge: 15KV; IEC61000-4-3 800~1000MHz 10V/m; IEC61000-4-4 ±2KV; IEC61000-4-5 DM: ±6KV CM: ±10KV; IEC61000-4-6 0.15~80MHz 10V/m; EN55015 CLASS C
• Wiring: Lead wire
• Rated voltage: 100–240 VAC
• Finish: Silvery white; anodized
• Housing: Aluminium alloy
• Cover: PC
• Weight: 11 kg / 12 kg / 17 kg (depending on configuration)
• Mounting: Bracket
• Operating temperature (Ta): -40°C to +50°C
• Vibration: IEC60068-2-6 5g
• Ingress protection: IEC60529 IP67
• Corrosion protection: ISO12944 C5 M
