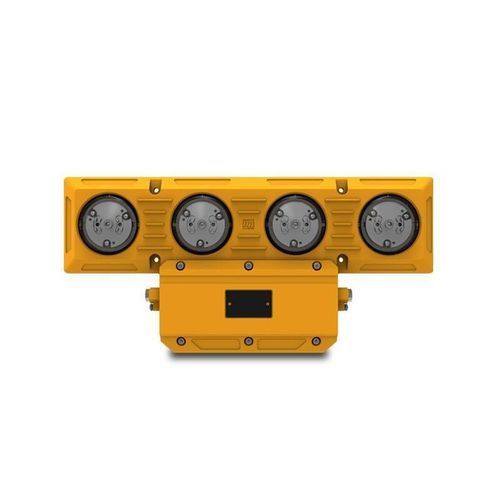

Light fixture LP412A

LEDoutdoorfor helidecks

Description and Application
TD/PM Circle Light is a helideck lighting indicator providing Touchdown/Position Marking (TD/PM). Designed for offshore helidecks, vessel helidecks and other hazardous-area applications. Certified for explosive gas atmospheres Zone 1 and Zone 2, gas groups IIA / IIB / IIC and temperature classes T1–T6.

Features

• Stainless steel 316 housing with corrosion and vibration resistance; IP67 protection suitable for hazardous outdoor environments.
• Professional photometric design with high- and low-temperature resistant PC lens to ensure long-term photometric performance.
• Engineering-plastics light cover; operating temperature down to -50°C; 4 J shock resistance; thermal shock resistance and qualified for 3 MPa static pressure.

Optics
Intensity: 20cd ~ 45cd
Vertical beam angle: 90°
Horizontal beam angle: 360°
Light color: Yellow
Work mode: Steady burning

Electrical
Rated voltage: DC24V
Rated power: ≤2W
Lamp source: LED
Lightning surge: GD22-2015 L-L 0.5kV, L-G 1kV
Electrostatic discharge: GD22-2015 air discharge 8kV, contact discharge 6kV
EMC: GD22-2015

Mechanical / Environmental
Operating temperature: Ta -50°C ~ +60°C
Humidity: 10% ~ 95% RH
IP rating: IP67
Cable gland: Suitable for cable Ø8 ~ Ø10 mm²; ≤1.5 mm² lead wire reliable connection
Housing color: Yellow

Technical specifications

• Product name: TD/PM Circle light
• Model / series: LP412A
• Intensity: 20cd ~ 45cd
• Vertical beam angle: 90°
• Horizontal beam angle: 360°
• Light color: Yellow
• Work mode: Steady burning
• Rated voltage: DC24V
• Rated power: ≤2W
• Lamp source: LED
• Lightning surge protection: GD22-2015 L-L 0.5kV, L-G 1kV
• Electrostatic discharge: air 8kV / contact 6kV (GD22-2015)
• EMC standard: GD22-2015
• Operating temperature: -50°C to +60°C
• Humidity: 10%–95% RH
• Ingress protection: IP67
• Cable gland suitability: Ø8–Ø10 mm²; ≤1.5 mm² lead wire
• Housing material: Stainless steel 316 (corrosion and vibration resistant) and engineering plastics cover
• Certifications / suitability: Certified for explosive gas atmosphere Zone 1 & Zone 2; gas groups IIA / IIB / IIC; temperature classes T1–T6
