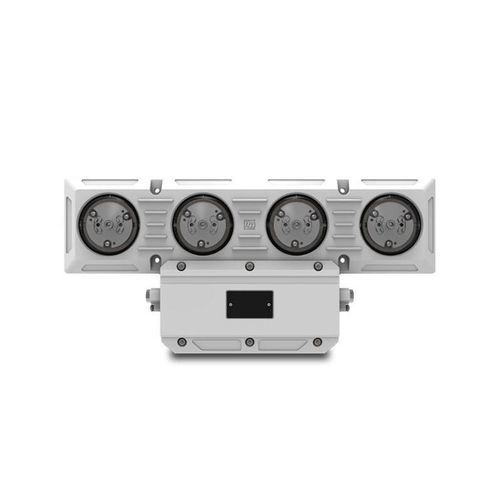

Low-intensity obstruction light LP411A

for helidecksexplosion-proofLED

Overview
The TD/PM H-light TD/PM H-light suitable for offshore helipads is designed for use on offshore oil platforms, ship aprons and other hazardous helideck environments. It is explosion-proof with ATEX and IECEx certification for gas zones 1 and 2 and is rated for IIA/IIB/IIC atmospheres and temperature classes T1–T6.

Features

• Stainless steel 316 housing providing corrosion and vibration resistance; IP67 protection suitable for exposed offshore conditions.
• Professional photometric design with high- and low-temperature resistant PC lens to ensure stable long-term photometric performance.
• Dimming options: supports PWM or RS485 (0–100) for stepless dimming to reduce glare during pilot approach.

Applications

• Offshore helipads
• Offshore oil platforms
• Ship aprons and hazardous outdoor helidecks

Technical specifications

• Product name: TD/PM H light
• Denomination / Model (page): LP4 (page model grouping); product marketed as LP411A
• Optics — Intensity: 20 cd ~ 45 cd
• Optics — Vertical beam angle: 90°
• Optics — Horizontal beam angle: 360°
• Optics — Light color: Green
• Optics — Work mode: Steady burning
• Electrical — Rated voltage: DC 24V
• Electrical — Rated power: ≤2W
• Electrical — Lamp source: LED
• Electrical — Lightning surge: GD22-2015 L-L 0.5 kV; GD22-2015 L-G 1 kV
• Electrical — Electrostatic: GD22-2015 air discharge 8 kV
• Electrical — Contact discharge: GD22-2015 contact discharge 6 kV
• Electrical — EMC: GD22-2015
• Mechanical — Operating temperature: Ta -50℃ ~ +60℃
• Mechanical — Humidity: 10% ~ 95% RH
• Mechanical — IP rating: IP67
• Mechanical — Cable gland: Suitable for cable Ø8 ~ Ø10 mm; reliable connection for lead wire ≤1.5 mm²
• Mechanical — Housing color: White
