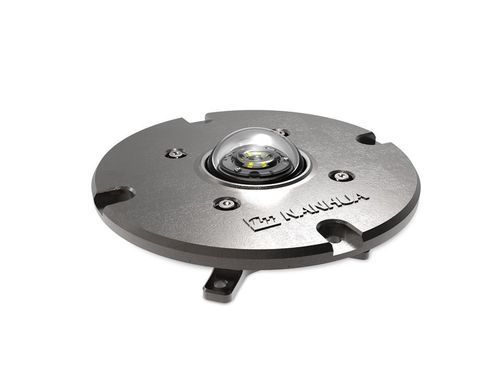

Helideck obstruction light LP3

LEDexplosion-prooffor hazardous areas

Overview
LP3 helideck perimeter light designed for offshore and vessel helideck perimeter marking on moving and permanent platforms. Certified for use in explosive gas atmospheres (Zone 1 and Zone 2), gas groups IIA / IIB / IIC and temperature classes T1–T6.

Key features

• Stainless steel 316 housing for corrosion and vibration resistance in marine environments.
• Professional photometric design with high/low temperature resistant PC lens for long-term performance.
• Tempered glass cover; operational down to -50°C; 4 J shock resistance; thermal shock resistant and rated to 5 MPa static pressure.
• LED light source with thermal management keeping LED chip temperature below 85°C during operation.
• Dimming: stepless dimming via PWM or RS485 (0–100%) to reduce glare during pilot approach.
• Electromagnetic compatibility (EMC) compliant.

Product description and application
Applicable to offshore helideck perimeter lighting on moving and permanent platforms, including offshore oil & gas platforms, floating units and vessel helidecks. Suitable for hazardous offshore areas where explosion-proof certification and robust environmental resistance are required.

Optics

• Lamp source: LED
• Intensity: 30 cd – 60 cd
• Light color: Green / Yellow / Blue / Red / White
• Work mode: steady burning
• Horizontal beam: 360°
• Vertical beam angle: 90°

Electrical

• Rated voltage: DC 24 V or AC 100 V – 240 V
• Rated power: ≤ 5 W
• Lightning surge protection: GD22-2015 L-L 0.5 kV; L-G 1 kV
• Electrostatic discharge: GD22-2015 air discharge 8 kV
• EMC standard: GD22-2015

Mechanical and environmental

• Operating temperature: Ta -50°C to +60°C
• Humidity: 10% to 95% RH
• Corrosion resistance: C5
• Cable gland: 2 × M20 × 1.5 (use appropriate EX cable gland)
• Wiring terminal: suitable for cable Ø9 – Ø14 mm²; lead wire ≤ 2.5 mm²
• Ingress protection: IP67
• Weight: 4.3 kg
• Housing material: Stainless steel 316
• Light cover: Tempered glass

Applications & typical installations
Offshore helideck perimeter lighting on oil & gas platforms, floating helidecks, vessels and other hazardous offshore areas requiring explosion-proof certification and high environmental resistance.

Technical specifications

• Product name: Helideck Perimeter Light
• Product model: LP3
• Lamp source: LED
• Intensity: 30 cd – 60 cd
• Colors available: Green, Yellow, Blue, Red, White
• Beam pattern: 360° horizontal, 90° vertical
• Operation mode: Steady burning
• Voltage: DC24V or AC100V–240V
• Power: ≤ 5 W
• EMC / surge / ESD: GD22-2015 compliance
• Operating temperature: -50°C to +60°C
• Humidity: 10%–95% RH
• Corrosion class: C5
• Ingress protection: IP67
• Weight: 4.3 kg
• Housing: Stainless steel 316
• Light cover: Tempered glass
• Cable glands: 2 × M20 × 1.5
