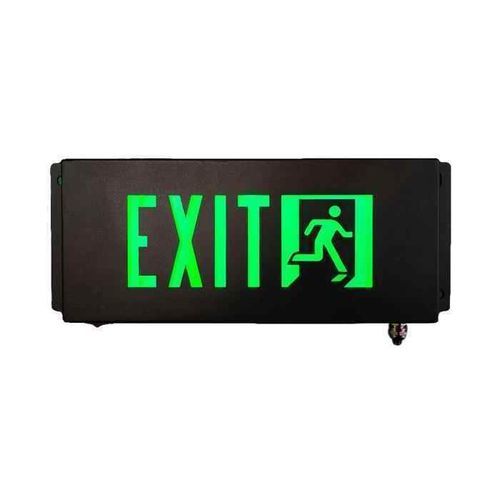

Wall-mounted indicator light LYE

corrosion-resistantimpact-resistantEMC

Product description and application
LYE series emergency indicator lights feature low power consumption, high luminance and long LED lifetime. They include a side-mounted emergency function switch and are designed for industrial and public installations (factories, ports, warehouses) to indicate emergency lighting routes and statuses during power failures.

Features

• LED light source for energy efficiency and extended service life.
• Laser light guide plate for soft, uniform illumination with strong penetration.
• Emergency conversion time < 1 s; built-in overcharge and over-discharge protection.
• Electromagnetic compatibility compliant with EMC standards.
• Metal SPCC housing with black powder coating for impact and corrosion resistance.
• Wall-mounted installation for fast and secure fitting.

Optics & Performance

• Light source: LED
• Light color: Green
• LED lifetime: ≥50,000 h
• Luminance: 100–260 cd/m2

Electrical

• Operating voltage: 100–240 VAC
• Power consumption: 3.5 W
• EMC: ESD IEC61000-4-2 (Contact ±4 kV / Air ±8 kV); EFT IEC61000-4-4 ±1 kV; Surge IEC61000-4-5 (Line-Line ±2 kV / Line-Ground ±4 kV); EN55015
• Wiring: Lead wire

Mechanical & Environmental

• Housing color: Black
• Housing material: SPCC
• Surface finish: Black powder coating
• Weight: 1.3 kg
• Mounting: Wall mount
• Operating temperature: -20 °C to +55 °C
• Storage temperature: -40 °C to +70 °C
• Vibration resistant: IEC60068-2-6, 3 g
• Salt spray: ISO9227, 480 h

Technical specifications

• Product name: Emergency Indicator Lights
• Product series: LYE
• Light source: LED
• Light color: Green
• LED lifetime: ≥50,000 h
• Luminance: 100–260 cd/m2
• Operating voltage: 100–240 VAC
• Power consumption: 3.5 W
• EMC standards: ESD, EFT, Surge and EN55015 compliance
• Wiring: Lead wire
• Housing: SPCC, black powder coating
• Weight: 1.3 kg
• Mounting: Wall mount
• Operating temperature: -20 °C to +55 °C
• Storage temperature: -40 °C to +70 °C
• Vibration: IEC60068-2-6, 3 g
• Salt spray resistance: ISO9227, 480 h
• Emergency conversion time: <1 s
• Protection: Overcharge and over-discharge protection included
