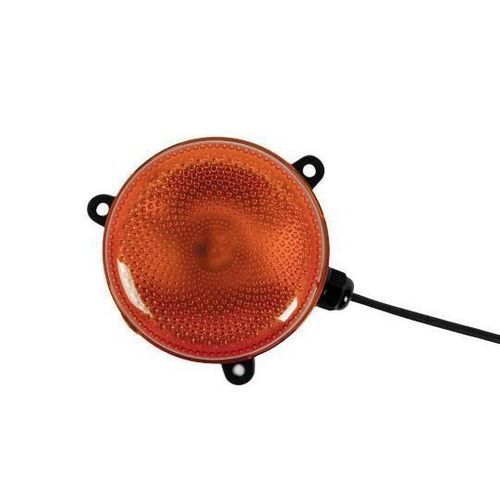

Flash beacon LR13S

rotatingLED32VDC

Overview

• High-brightness LED light source: long life, energy-saving, instant on/off.
• Independent constant-current drive with digital control technology for stable and reliable operation.
• Modular assembly process for simplified maintenance.
• High-transparency integrated polycarbonate lampshade with optical treatment to improve luminous efficiency.
• Strong waterproofing, corrosion resistance, shock resistance and UV resistance.
• Multiple installation and wiring options to expand application range.

Products description and application
Applied to engineering machinery (overhead crane, crawler crane, mobile crane), port cranes (quay crane, gantry crane), industrial vehicles and other industrial environments requiring high-visibility warning signals.

Technical specifications

• Base:
  Product name: Warning Beacon
  Product model: LR13S
• Optics:
  Warning mode: Flash / Rotating (16 alarm patterns available)
  Light source: LED
  Color: Yellow / Red (other colors customizable)
  Light intensity: >=100 cd
• Electrical:
  Rated voltage: DC9V–32V
  Reverse polarity protection: Yes
  Power: <=6W (average), <=12W (peak)
  Electromagnetic compatibility: IEC 61000-4-2 ±1000V; IEC 61000-4-5 ±8000V
  Lead wire method: M20 waterproof connector
• Mechanical:
  Lamp holder material: PA6+30%GF
  Lamp cover material: PC
  Operating temperature: Ta -30 °C ~ +55 °C
  Ambient humidity: 10% ~ 95% (non-condensing)
  IP rating: IP66
  Installation method: Bolt mounting, Magnetic mounting, etc.
  Weight: 0.6 kg
