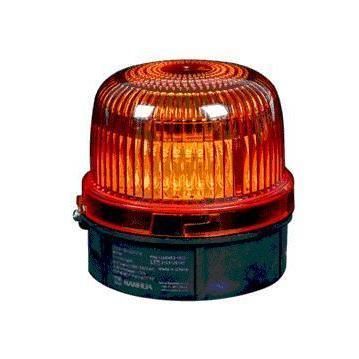

Rotating beacon LR09

steadyflashLED

Overview
The LR09 warning beacon is an LED visual alarm designed for industrial machinery and heavy equipment. It is suitable for use on construction machinery (tower cranes, crawler cranes), port equipment (container cranes, bridge cranes), and other applications requiring visual warning signals for danger and emergency situations.

Features

• Compact, lightweight design for easy installation
• High-brightness LED chips; selectable color and operating mode
• Long service life and stable performance (LED lifetime approx. 100,000 h)
• PC cover with optimized optics for high light transmission; UV and aging resistant
• Multiple installation options (wall/bracket or surface mounting)
• Wide voltage compatibility: DC and AC versions available

General specifications
Base
Product name: Warning beacon
Product model: LR09

Optics
Alarm modes: Steady / Flashing / Rotating (16 modes optional)
Intensity: ≤ 50 cd
Light source: LED
Color: Red, Amber
LED lifetime: 100,000 h

Electrical
Rated voltage: 9-32 VDC / 85-265 VAC
Power consumption: DC version: <3 W (avg), 6.5 W (peak); AC version: <5 W (avg), 8.5 W (peak)
Frequency: 50 Hz / 60 Hz
EMC: IEC61000-4 series (air discharge 8 kV, contact discharge 4 kV; surge tests as specified)
Connection type: Bottom lead wire / Side lead wire

Mechanical
Material: Body PA6 + GF30%; Cover PC
Color options: Red, Amber
Weight: 0.3 kg
Installation: Wall mounting (with bracket) / Surface mounting
Operating temperature: -30°C ~ +55°C (IEC60068-2-1 / IEC60068-2-2)
Ambient humidity: 10% ~ 95% RH (IEC60068-2-3)
Vibration resistance: IEC60068-2-6, 2 g
Ingress protection: IEC60529 IP65

Characteristics / Technical specifications

• Model: LR09
• Product name: Warning beacon
• Light source: LED, lifetime approx. 100,000 h
• Available colors: Red, Amber
• Alarm modes: Steady / Flashing / Rotating (16 modes optional)
• Light intensity: ≤ 50 cd
• Voltage: 9-32 VDC / 85-265 VAC
• Power consumption: DC: <3 W avg / 6.5 W peak; AC: <5 W avg / 8.5 W peak
• Ingress protection: IP65
• Materials: Body PA6+GF30%, Cover PC
• Weight: 0.3 kg
• Operating temperature: -30°C ~ +55°C
• Standards: EMC and environmental endurance per IEC61000-4 and IEC60068 series
