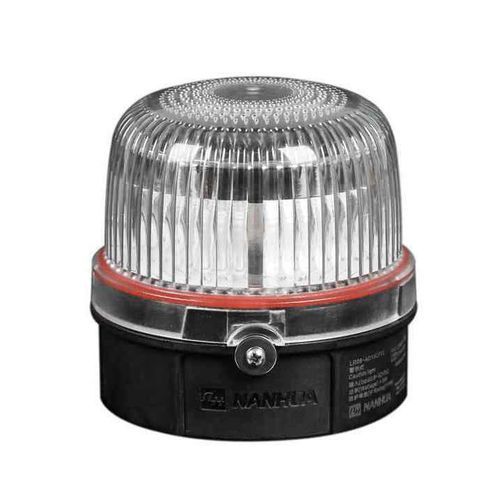

Flash flashing light LR09S

LEDIP65magnetic-mount

Product overview
The LR09S is a compact solar-powered LED flashing beacon engineered for industrial and port machinery. It delivers high-visibility flashing signals with low power consumption and long operational life, suitable for demanding outdoor and mobile applications.

Applications
Designed for engineering machinery (overhead cranes, mobile cranes, construction vehicles) and port machinery (quay cranes, gantry cranes) where autonomous, maintenance‑free warning lighting is required.

Features

• Compact, lightweight design for easy mounting
• High-brightness flashing for strong visual detection
• Low power consumption — continuous operation up to 7 days under typical conditions
• Reliable, stable operation with long LED lifetime
• PC lens and optimized optics for high light transmission, UV and aging resistance

Optics / Electrical / Mechanical summary
The LR09S functions as a night-time flashing, day-time off LED beacon powered by a polycrystalline solar cell that charges an internal Ni‑MH battery. The unit is manufactured from durable materials and offers protection against vibration and wide temperature ranges, with IP65 ingress protection for harsh industrial and port environments.

Technical specifications

• Product name: Solar Warning light
• Product model: LR09S
• Alarm type: Flashing (On 30 ms / 1.5 s)
• Light source: LED
• Flashing color: Red or Amber
• LEDs lifetime: 100,000 h
• Battery type: Ni‑MH battery
• Battery capacity: 1.2 V / 2400 mAh
• Charging type: Solar cell
• Solar cell: Polycrystalline silicon 0.3 W
• Autonomy (hours): >120 h (fully charged; temperature > 5 °C)
• On/Off type: Switch (do not turn on the beacon while transporting)
• Work mode: Flashing at night, Off in daytime
• EMC: IEC61000-4-2 Air discharge 8 kV, contact discharge 4 kV
• Body material: PA6 + GF30%
• Lens color: Transparent, Red or Amber
• Lens material: PC
• Weight: 0.3 kg
• Mount type: screw mount, magnetic mount, mounting bracket or flange mount
• Operating temperature: IEC60068-2-1 / IEC60068-2-2 -30 °C ~ +55 °C
• Relative humidity: IEC60068-2-3 10% ~ 95% RH
• Vibration resistant: IEC60068-2-6 2 g
• IP rating: IEC60529 IP65
