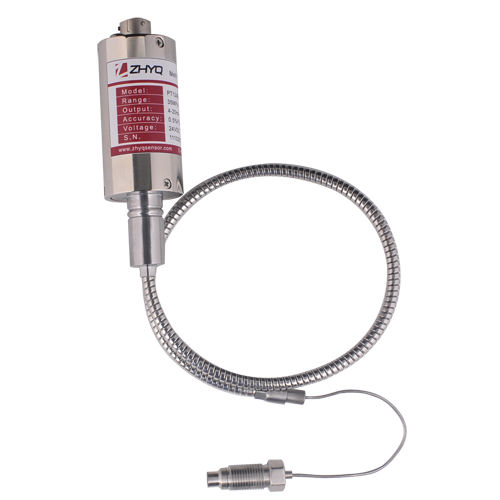

Strain gauge pressure transducer PT124G-128
threadedplasticstainless steel

strain gauge pressure transducer
strain gauge pressure transducer
strain gauge pressure transducer
Add to favorites
Compare this product


Characteristics

Technology
strain gauge
Mounting
threaded
Material
stainless steel, plastic
Applications
process, melt, for extruders, for injection molding machines, for melt, for extrusion lines, for the plastics industry, for the chemical industry
Other characteristics
OEM, precision, high-temperature
Pressure range

5,000 psi

Min.: 0 psi

Max.: 20,000 psi

Precision

0.5 %

Process temperature

Min.: 0 °C
(32 °F)

Max.: 350 °C
(662 °F)

Description

PT124G-128 Series melt pressure transducer is ideal for space restricted areas applications required, where mounting space is limited. It also has a free-spinning jam nut that simplifies installation. It comes equipped with six or eight pin bendix connector, and it can be interchangeable with the similar world standard products. Features Exposed, bendable capillary Stainless steel wetted parts Internal 80% Shunt Calibration Good stability and repeatability Leave Your Inquiry Application It can be used in various plastic extrusion lines for pressure measuring and control, such as chemical fiber manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical. Basic specification Over Pressure - 1.5 X FSO Combined Error - 0.5% FSO (Including Linearity, Repeatability&Hysteresis) Output - 3.33 mV/V, 2mV/V Input Voltage - 10VDC Repeatability - +/- 0.2%FSO Bridge Resistance Input - 345 Ohms minimum Bridge Resistance Output - 350 Ohms +/- 10% Internal Shunt Calibration (R-Cal) - 80% FSO +/- 1% Insulation Resistance - 200 megohms @ 100 Vdc Mounting Torque - 500 inch/lbs. max. Standard Wetted Parts - Diaphragm coated 15-5 PH SST Electrical connector - 5PIN, 6PIN Process connector - 1/2 ″ -20UNF, M14×1.5, M18×1.5 Optional
