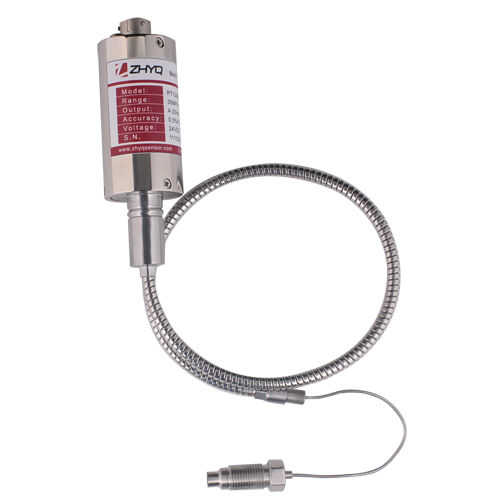

Strain gauge pressure transmitter PT124B-128
4-20 mAmeltfor melt

strain gauge pressure transmitter
strain gauge pressure transmitter
strain gauge pressure transmitter
Add to favorites
Compare this product


Characteristics

Technology
strain gauge
Output
4-20 mA
Applications
melt, for melt
Process temperature

Min.: 0 °C (32 °F)

Max.: 350 °C (662 °F)

Pressure range

Min.: 0 psi

Max.: 20,000 psi

Description

Description PT124B-128 Series melt pressure transmitter is ideal for space restricted areas applications required, where mounting space is limited. It also has a free-spinning jam nut that simplifies installation. The PT124B comes equipped with six or eight pin bendix connector. It can be interchangeable with the similar world standard products. It is suitable to measure and control the melt pressure in chemical fiber equipment, rubber and plastic machine and so on. Specifications: Pressure range: 0-3.5MPa…0-150MPa(0-500psi…0-20000psi) Over Pressure: 1.5 X FSO Combined Error: ± 1.0% FSO , ± 1.5% FSO (Including Linearity, Repeatability & Hysteresis) Output: 4-20mA, 0-10V, 0-5V Input Voltage: 24VDC Repeatability: +/- 0.2%FSO Bridge Resistance: Input: 345 Ohms minimum Output: 350 Ohms +/- 10% Internal Shunt Calibration (R-Cal): 80% FSO +/- 1% Insulation Resistance: 200 megohms @ 100 Vdc Max Diaphragm Temperature: 350℃ Mounting Torque: 500 inch/lbs. maximum Standard Wetted Parts: Diaphragm coated 15-5 PH SST Process connector: 1/2″-20UNF, M14×1.5, M18×1.5 Optional
