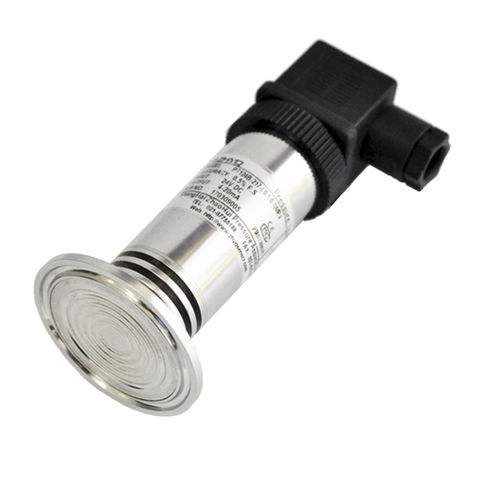

Relative pressure transmitter PT124B-217
membraneanalogflush diaphragm

relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Technology
membrane
Output
analog
Mounting
flush diaphragm
Material
stainless steel
Applications
for the food industry
Other characteristics
compact, precision, CE, with diaphragm seal, sanitary, with amplified output
Pressure range

Max.: 200 bar
(2,900.75 psi)

Min.: -1 bar
(-14.5 psi)

Precision

0.25 %, 0.5 %

Long-term stability

0.2 %

Process temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

PT124B-217 Series clamp pressure transmitter, it adopts firm material with special treatment, it is suitable for the low pressure measurement occasion. This product design with compact construct, corrosive-resistant, shock-resistant, it solves the problems during the measurement that the pressure port is easily blocked, it can be interchangeable with the similar world standard products. Feature Various signal output for industrial standard Wide pressure range High accuracy, high stability compact dimension design with high-standard quality Application This item suitable for polyurethane device, papermaking, paint, medical pharmacy, food & Beverage. Basic specification Over load - 150%FS Burst pressure - 300%FS Power supply - 12~36VDC Response time - <5ms Combine error - 0.25%FS; 0.5% FSO (Including Linearity, Repeatability & Hysteresis) Repeatability - ≤ +/- 0.2%FSO Pressure connection - 1.0 ″ , 1.5 ″ Electrical connector - Bendix connector,Hirschman DIN4365 and Gland lead
