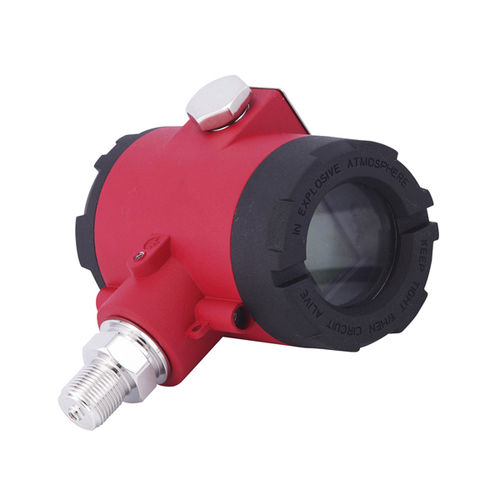

Relative pressure transmitter PT124B-281
4-20 mAG 1/4G 1/2

relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Output
4-20 mA
Process connection
NPT 1/2, G 1/2, G 1/4
Material
stainless steel
Protection level
explosion-proof, corrosion-resistant, flameproof, IP65
Applications
for medical applications
Other characteristics
precision, smart, with LCD display
Pressure range

Max.: 2,000 bar
(29,007.55 psi)

Min.: -1 bar
(-14.5 psi)

Precision

0.5 %

Process temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

The anti-corrosive explosion proof pressure transmitter designed with flameproof structure, it is suitable for outdoor installation, LCD display optional, the wetted parts adopts material of 316L, hastelloy alloy or F4. Features High accuracy, high stability Explosion proof grade ExibllCT4 Application This series product is suitable for the occasion of chemical fiber, environmental protection, medicine, industrial control and etc. It is used to measure the pressure or height of the liquid level of corrosive medium, such as acid, alkaline and so on. Basic specification Over load - 150%FS Burst pressure - 300%FS Response time - <5ms Combine error - 0.5% FSO(Including Linearity, Repeatability & Hysteresis) Pressure connection - M20×1.5, G1/2 , G1/4 ,1/2NPT ( customer tailor ) Electrical connector - Terminal Block Explosion proof grade - ExiallCT4
