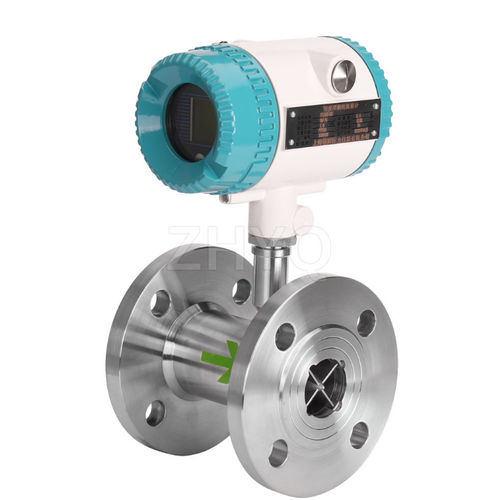

Turbine flowmeter PT124B-502

volumethreadedstainless steel

PT124B-502 intelligent integrated turbine flowmeter adopts advanced ultra-low power consumption single-chip microcomputer technology, with double-row LCD on-site display, with compact structure, intuitive and clear readings, high reliability, no external power interference, anti-lightning strike, low cost low-level features. Features 1. High accuracy, generally up to ±1%R, ±0.5%R, high-precision type up to ±0.2%R; 2. Good repeatability, short-term repeatability can reach 0.05%~0.2%, (it is the preferred flow meter in trade settlement); 3. Equipped with three-point correction of instrument coefficient, intelligently compensates the non-linearity of instrument coefficient, and can perform on-site correction 4. All valid data will not be lost for 10 years after power failure; 5. The range is wide, the medium and large diameter can reach 1:20, and the small diameter can reach 1:10; 6. Compact and light structure, convenient installation and maintenance, large flow capacity; 7. It is suitable for high-pressure measurement, and there is no need to open holes on the meter body, so it is easy to make a high-pressure meter; 8. There are many types of special-purpose sensors, which can be designed into various special-purpose sensors according to the special needs of users, such as low-temperature type, two-way type, downhole type, sand mixing type, etc.; 9. It can be made into plug-in type, suitable for large-diameter measurement, with small pressure loss, low price, can be taken out without continuous flow, and easy to install and maintain.
