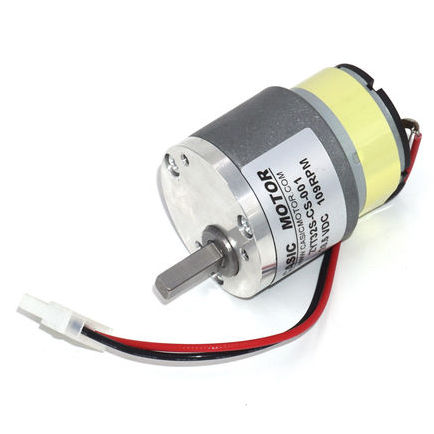

Universal motor ZYT32S-CS-001DC
Add to favorites
Compare this product
Characteristics
- Type
- universal, DC
- Torque
0.98 Nm
(0.722811 ft.lb)- Rotational speed
70 rpm
(439.823 rad.min-1)- Diameter
32 mm
(1.26 in)
Description
MODEL: ZYT32S-CS-001
MOTOR OPERATIN VOLTAGE: 28.5V D.C.
NO LOAD SPEED: 110 +/- 10 rpm
NO LOAD CURRENT: 0.1A MAX
RATED TORQUE: 10kg.cm
RATED CURRENT: 1.0A MAX
RATED SPEED: 70 +/- RPM
GEAR RATIO 1/90
SHAFT ENDPLAY 0.030 MAX
NOISE: WHEN MOTOR OPERATES WITH NO LOAD THE NOISE SHOULD BE NOT MORE
THAN 60dB(A) AT 30cm DISTANCE
APPLICATION: SNACK VENDING MACHINE
