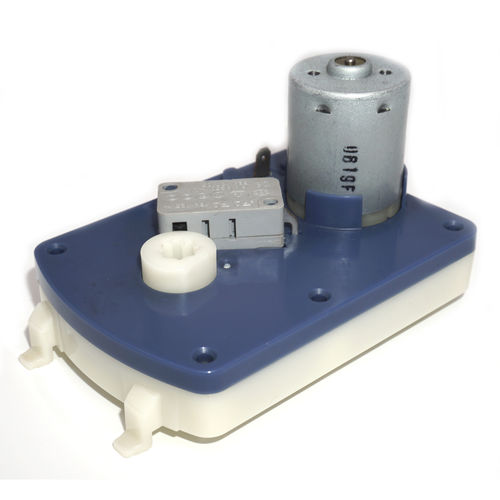

Universal motor ZYT28T-CS-002DC24 V
Add to favorites
Compare this product
Characteristics
- Type
- universal, DC
- Voltage
- 24 V
- Torque
1 Nm
(0.737562 ft.lb)- Rotational speed
18 rpm
(113.0973 rad.min-1)
Description
Model: ZYT28T-CS-002
Rated voltage: 24VDC
No load current: 110mA Max
No load speed: 24+/-10% rpm
Rated current: 300mA Max
Rated speed: 18+/- 3rpm
Rated torque: 1.0N.m
Stall current: <950mA
Gear ratio: 414.5:1
RoHS compliance
Application: Snack & Beverage Vending Machine
