- Power Transmission - Mechanical components
- Motor and Motor Control
- Universal motor
- Shenzhen Casic Motor System Co., Ltd.

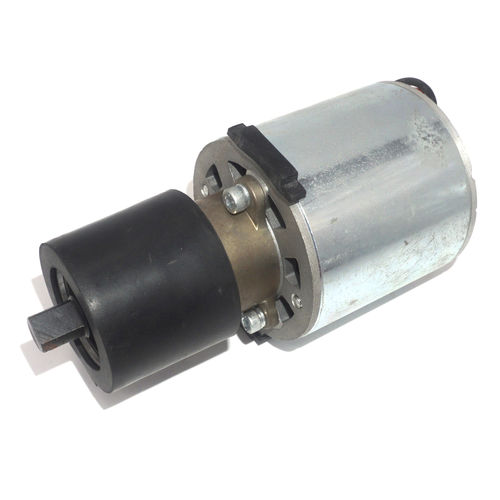

Universal motor ZYT077U-CS-001DC12 V
Add to favorites
Compare this product
Characteristics
- Type
- universal, DC
- Voltage
- 12 V
- Torque
2.7 Nm
(1.991418 ft.lb)- Rotational speed
310 rpm
(1,947.7874 rad.min-1)
Description
Model : ZYT077U-CS-001
Rated voltage : 12VDC
No load current : 2.8A Max
No load speed : 390Rpm±10%
Rated current : 16.5A Max
Rated speed : 310Rpm±10%
Rated torque : 2.7N.m
Direction of rotation : CCW
Noise : 85dBA Max
Gearbox Ratio : 16:1
Application: Automatic Door, Industrial Automation
Catalogs
CASIC MOTOR
26 Pages
